Product Overview

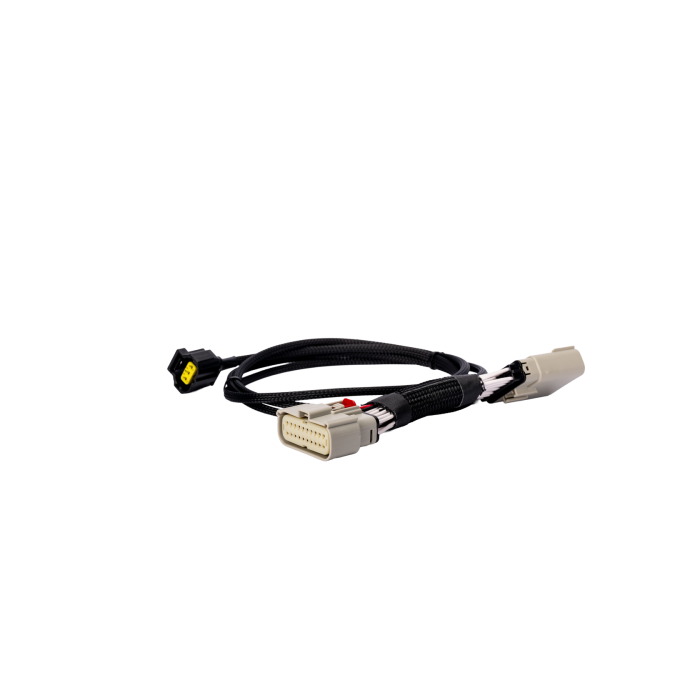

The Fleece Performance Charging Circuit Harness for the 2020-2022 Ford 6.7L Power Stroke is a drop-in replacement with no cutting or splicing to fix the common problem of an intermittent or continuously illuminated battery lamp on the dash!
Key Benefits
- Application-specific wiring harness based on the manufacturer-supplied catalog data.
- Product specifications and fitment details are listed below for review.
Product Details
Designed and produced in-house, our manufacturing process includes fully automated wire cutting and terminal crimping to ensure you get the highest quality replacement parts you need to get your truck back on the road quickly.
Fits 2020-2022 Ford F250/350/450/550 with 6.7L Powerstroke.
Problem Overview:
Complaint: Charging circuit MIL illuminated intermittingly or continuously on the truck dash.
Cause: Damaged, stressed, chaffed, or broken charging circuit sense wires in the OEM harness that are routed from the Powertrain Control Module (PCM) to the alternator resulting in an intermittent voltage reading to the PCM.
Due to the routing, exposure, and general lack of protection on the small charging circuit sense wires that are routed from Powertrain Control Module (PCM) to the alternator it is common for wire damage to be experienced.
The routing of the OE harness is cumbersome and extremely difficult to replace and diagnose.
Fix/Solution: The Fleece Performance Charging Circuit Harness is a drop-in replacement to replace a failed factory harness causing an intermittent or illuminated charging circuit MIL on the dash.
The harness installs directly in-line with factory connections with no cutting or splicing and allows you to reroute the alternator connection along the top side of the engine.
Application Notes:
Fits 2020-2022 Ford F250/350/450/550 with 6.7L Powerstroke. This kit is for the charging circuit on the Primary Alternator and can be used on vehicles equipped with a secondary alternator.
- Brand: Fleece Performance
- Manufacturer SKU: FPE-HAR-FMC-CCH-2022
- UPC: 732777409549
- Product Type: Wiring Harness
- Weight: 2 lb
- Package Dimensions: 11 × 5 × 5 in
- Warranty: 6 Month Limited Warranty
Vehicle Fitment
Vehicle applications are listed below. Trim names appear in the Submodel column when available. Check all vehicle details before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021–2022 | Ford | F-250 Super Duty | King Ranch |
| 2021–2022 | Ford | F-250 Super Duty | Lariat |
| 2021–2022 | Ford | F-250 Super Duty | Limited |
| 2021–2022 | Ford | F-250 Super Duty | Platinum |
| 2021–2022 | Ford | F-250 Super Duty | XL |
| 2021–2022 | Ford | F-250 Super Duty | XLT |
| 2021–2022 | Ford | F-350 Super Duty | King Ranch |
| 2021–2022 | Ford | F-350 Super Duty | Lariat |
| 2021–2022 | Ford | F-350 Super Duty | Limited |
| 2021–2022 | Ford | F-350 Super Duty | Platinum |
| 2021–2022 | Ford | F-350 Super Duty | XL |
| 2021–2022 | Ford | F-350 Super Duty | XLT |
| Weight | 2 lbs |
|---|---|
| Dimensions | 11 × 5 × 5 in |
| Year | |
| Make | |
| Model | F-250, F-350 |
| Engine | 6.7L Power Stroke |
| Part Type | Wiring Harness |
| Brand | Fleece |
