Product Overview

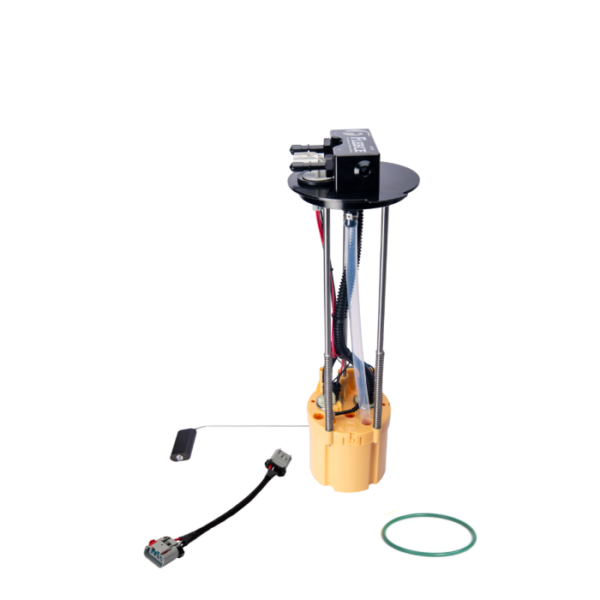

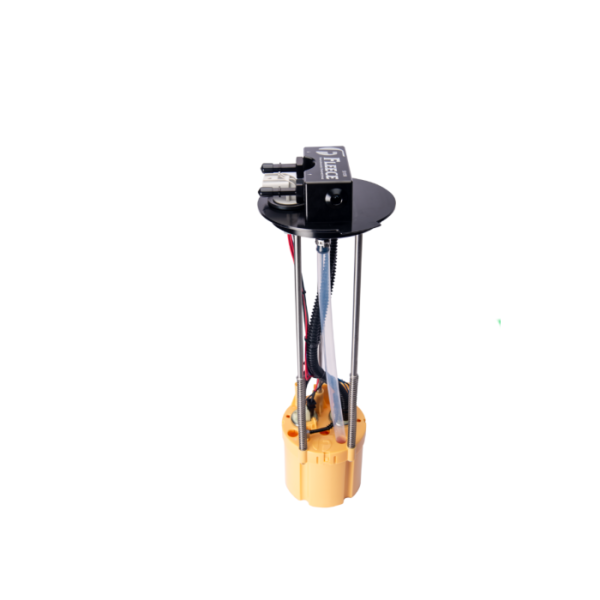

Fleece Performance PowerFlo In-Tank Lift Pump for 2020–2024 Dodge/Ram 6.7L Cummins with Factory 50-Gallon Fuel Tank
The Fleece Performance PowerFlo Lift Pump is a direct in-tank replacement designed specifically for compatible 2020–2024 Ram 2500 and Ram 3500 trucks equipped with the 6.7L 24-valve Cummins and the factory-installed 50-gallon fuel tank.
The PowerFlo replaces the original in-tank lift-pump assembly while retaining the factory fuel lines, water-in-fuel sensor, fuel heater, and fuel-level monitoring functions.
Its dual-gerotor design provides increased fuel-flow capacity for stock and modified Cummins applications. Fleece Performance rates the system to support applications producing up to 800 horsepower, including certain dual-CP3 configurations.
Key Benefits
- Factory 50-Gallon Tank Fitment: Designed specifically for trucks equipped with the original factory-installed 50-gallon fuel tank.
- Direct In-Tank Replacement: Installs in the original sending-unit location without adding an external sump or draw straw.
- Retains Factory Components: Maintains the original fuel lines, water-in-fuel sensor, fuel heater, and fuel-level monitoring.
- Dual Gerotor Pumps: Provides increased fuel-flow capability compared with the factory lift-pump arrangement.
- High-Flow Support: Rated by Fleece Performance to support applications producing up to 800 horsepower.
- Active Fill Bucket: Helps keep fuel around the pump assembly and reduce low-fuel-level supply concerns.
- Aftermarket Fuel-System Capability: Threaded outlet and return ports support certain custom fuel-line and filtration configurations.
Direct In-Tank Replacement
The PowerFlo Lift Pump installs in the factory fuel-tank opening and is designed to retain the original fuel-system connections.
Because it uses the original tank opening, installation does not require cutting the tank for an external sump or adding a separate draw straw.
Dual Gerotor Pump Design
The PowerFlo uses two gerotor-style pumps to increase fuel-flow capacity and provide additional pumping capability over the original factory lift pump.
Fleece Performance rates the system for stock and modified applications producing up to 800 horsepower, including certain dual-CP3 fuel-system configurations.

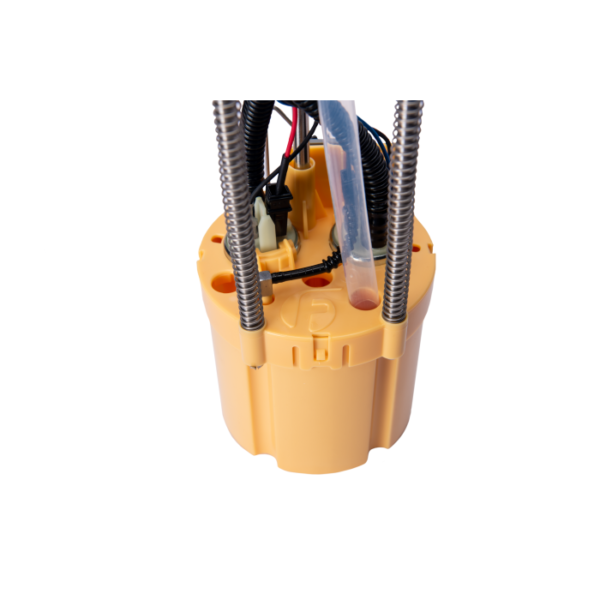

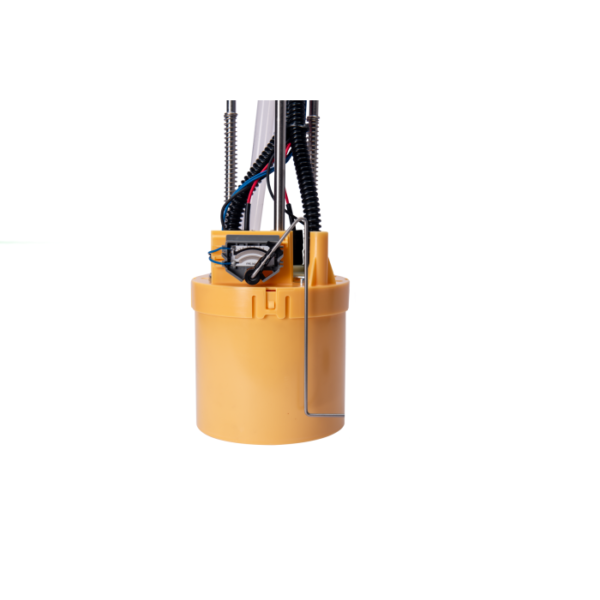

Active Fill Bucket
The active fill bucket is designed to maintain fuel around the pump assembly and help reduce fuel-starvation concerns at lower tank levels.
This design supports consistent fuel delivery while retaining an integrated in-tank pickup.

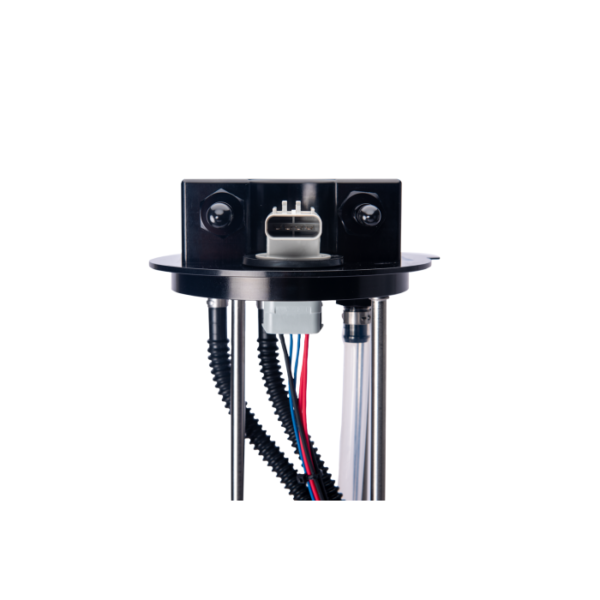

Aftermarket Fuel-System Capability
The pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4″-16 threads.
This allows the PowerFlo assembly to be used with certain aftermarket fuel lines, filters, and custom fuel-system configurations.
Application Notes
- Operating Pressure: Approximately 18–20 PSI at idle
- Required Fuel Tank: Factory-installed 50-gallon fuel tank
- Aftermarket Oversized Tanks: Not compatible with aftermarket oversized fuel tanks
- Cab and Chassis: Not compatible with cab-and-chassis applications
- Biodiesel Compatibility: Validated by Fleece Performance for fuel containing up to 20% biodiesel
- Fitment Verification: Confirm the truck has the factory 50-gallon tank before ordering.
Cross-Reference
| Year | Fleece Part Number | Ram OE Reference | Fuel-Tank Reference |
|---|---|---|---|
| 2020–2024 | FPE-PF-CUMM-2024-50 | 68490266AA | 68534612AB — Factory 50-Gallon Tank |
Product Specifications
- Part Number: FPE-PF-CUMM-2024-50
- Application: 2020–2024 Ram 2500 and Ram 3500
- Engine: 6.7L 24-Valve Cummins
- Fuel-Tank Configuration: Factory-installed 50-gallon tank
- Pump Type: Dual-gerotor in-tank lift pump
- Maximum Supported Power: Up to 800 HP as rated by Fleece Performance
- Operating Pressure: 18–20 PSI at idle
- Outlet and Return Threads: 3/4″-16 for -8 O-ring fittings
- UPC: 670875719200
- Shipping Weight: 12 lbs
Interchange Numbers
- 68490266AA
- Factory 50-Gallon Fuel Tank: 68534612AB
Product Video
Warranty
Installation Resources
Trademark Information
Protected under U.S. Trademark Registration No. 6,878,860.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment, vehicle configuration, original fuel-tank capacity, emissions requirements, and installation requirements before ordering. This product is only for compatible trucks equipped with the factory-installed 50-gallon fuel tank. It is not for cab-and-chassis applications or aftermarket oversized fuel tanks.
Vehicle Fitment
| Year | Make | Model | Engine | Fuel Tank |
|---|---|---|---|---|
| 2020–2024 | Dodge/Ram | Ram 2500 | 6.7L 24-Valve Cummins | Factory 50-Gallon Tank |
| 2020–2024 | Dodge/Ram | Ram 3500 | 6.7L 24-Valve Cummins | Factory 50-Gallon Tank |
