Product Overview

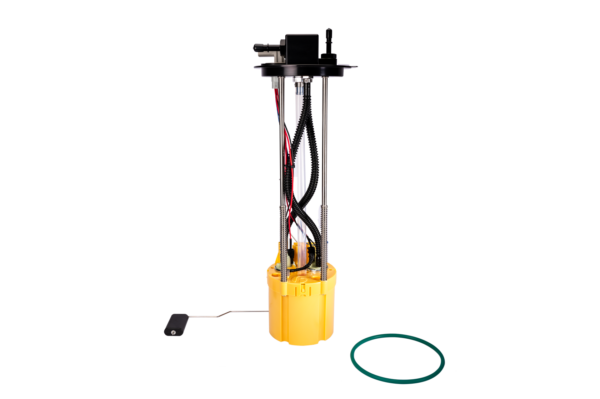

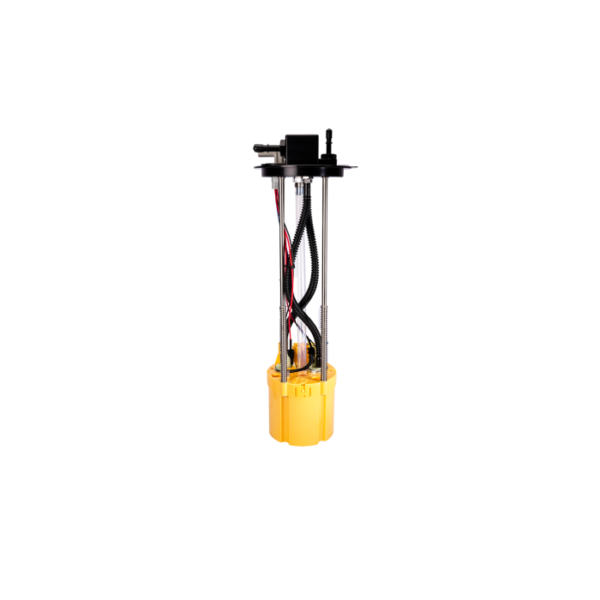

Fleece Performance PowerFlo In-Tank Lift Pump for 2011–2024 Dodge/Ram 4500/5500 Cab & Chassis 6.7L Cummins — 22-Gallon Midship Tank
The Fleece Performance PowerFlo Lift Pump is a direct in-tank replacement designed for compatible 2011–2024 Ram 4500 and Ram 5500 Cab & Chassis trucks equipped with the 6.7L 24-valve Cummins and the factory midship 22-gallon fuel tank.
The PowerFlo replaces the original in-tank lift-pump assembly while retaining the factory fuel lines, water-in-fuel sensor, fuel heaters, and related factory fuel-system connections.
Its dual-gerotor design provides increased fuel-flow capacity for stock and modified applications. Fleece Performance rates the system to support applications producing up to 800 horsepower.
Key Benefits
- Cab & Chassis Fitment: Designed specifically for compatible Ram 4500 and Ram 5500 Cab & Chassis trucks.
- 22-Gallon Midship Tank: Replaces the factory pump assembly used in the midship 22-gallon fuel tank.
- Direct In-Tank Replacement: Installs in the original sending-unit location without adding a sump or draw straw.
- Retains Factory Components: Maintains the original water-in-fuel sensor, fuel heaters, and factory fuel lines.
- Dual Gerotor Pumps: Provides increased fuel-flow capability compared with the factory lift-pump arrangement.
- High-Flow Support: Rated by Fleece Performance to support applications producing up to 800 horsepower.
- Active Fill Bucket: Helps maintain fuel around the pump assembly at lower fuel levels.
- Aftermarket Fuel-System Capability: Threaded outlet and return ports support certain custom fuel-line and filtration configurations.
Direct In-Tank Replacement
The PowerFlo Lift Pump installs in the factory fuel-tank opening and is designed to retain the original fuel-system connections.
Because the pump uses the factory tank opening, installation does not require cutting the fuel tank for a sump or installing a separate draw straw.
Dual Gerotor Pump Design
The PowerFlo uses two gerotor-style pumps to increase fuel-flow capacity and provide additional pumping capability compared with the original factory lift-pump arrangement.
Fleece Performance rates the system to support applications producing up to 800 horsepower when properly installed and matched to the vehicle’s fuel-system requirements.
Active Fill Bucket
The active fill bucket is designed to keep fuel around the pump assembly and help reduce fuel-starvation concerns sometimes associated with external draw straws and tank sumps.
This integrated design supports consistent fuel delivery while retaining an in-tank pickup.
Aftermarket Fuel-System Capability
The pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4″-16 threads.
This allows the PowerFlo assembly to be used with certain aftermarket fuel lines, filters, and custom fuel-system configurations.
Application Notes
- Operating Pressure: Approximately 18–20 PSI at idle
- Vehicle Configuration: For Cab & Chassis applications only
- Fuel-Tank Configuration: Factory midship 22-gallon fuel tank
- OE Pump Reference: Replaces 68064422AB
- Biodiesel Compatibility: Validated by Fleece Performance for fuel containing up to 20% biodiesel
Cross-Reference
| Application | OE Interchange Numbers | Fuel-Tank Configuration |
|---|---|---|
| 2011–2024 Ram 4500/5500 Cab & Chassis | 68064422AB, 04560227AC | Midship 22-Gallon Tank |
Product Specifications
- Application: 2011–2024 Ram 4500 and Ram 5500 Cab & Chassis
- Engine: 6.7L 24-Valve Cummins
- Fuel-Tank Configuration: Midship 22-gallon tank
- Pump Type: Dual-gerotor in-tank lift pump
- Maximum Supported Power: Up to 800 HP as rated by Fleece Performance
- Operating Pressure: 18–20 PSI at idle
- Outlet and Return Threads: 3/4″-16 for -8 O-ring fittings
- UPC: 732777408801
- Shipping Weight: 10 lbs
Interchange Numbers
- 68064422AB
- 04560227AC
Warranty
Installation Resources
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment, vehicle configuration, fuel-tank location, fuel-tank capacity, original pump part number, emissions requirements, and installation requirements before ordering. This product is intended only for compatible Ram 4500 and Ram 5500 Cab & Chassis applications equipped with the factory midship 22-gallon fuel tank.
Vehicle Fitment
| Year | Make | Model | Engine | Configuration | Fuel Tank |
|---|---|---|---|---|---|
| 2011–2024 | Dodge/Ram | Ram 4500 | 6.7L 24-Valve Cummins | Cab & Chassis | Midship 22-Gallon Tank |
| 2011–2024 | Dodge/Ram | Ram 5500 | 6.7L 24-Valve Cummins | Cab & Chassis | Midship 22-Gallon Tank |
