Product Overview

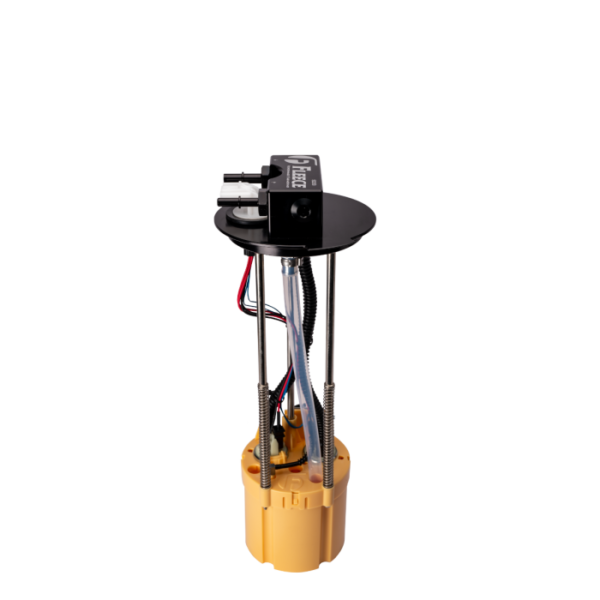

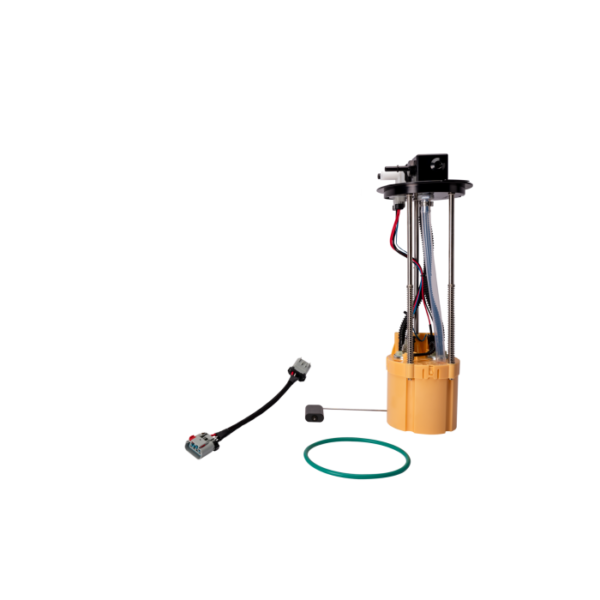

Fleece Performance PowerFlo In-Tank Lift Pump for 2011–2024 Dodge/Ram 6.7L Cummins
The Fleece Performance PowerFlo Lift Pump is a direct in-tank replacement designed for compatible 2011–2024 Ram 2500 and Ram 3500 trucks equipped with the 6.7L 24-valve Cummins.
This pump replaces the factory in-tank lift-pump assembly while retaining the original fuel lines, factory water-in-fuel sensor, factory fuel heater, and fuel-level sending functions.
The dual-gerotor design provides increased fuel-flow capability for stock and modified Cummins applications. Fleece Performance rates the PowerFlo system to support applications producing up to 800 horsepower, including certain dual-CP3 configurations.
Key Benefits
- Direct In-Tank Replacement: Installs in the factory fuel-tank opening without adding a sump or draw straw.
- Retains Factory Components: Maintains the original fuel lines, water-in-fuel sensor, fuel heater, and fuel-level monitoring.
- Dual Gerotor Pumps: Provides increased flow capability compared with the original factory lift-pump arrangement.
- High-Flow Support: Rated by Fleece Performance to support applications producing up to 800 horsepower.
- Active Fill Bucket: Helps maintain fuel around the pump assembly at lower tank levels.
- Aftermarket Fuel-Line Capability: Threaded outlet and return ports allow use with certain custom fuel-system configurations.

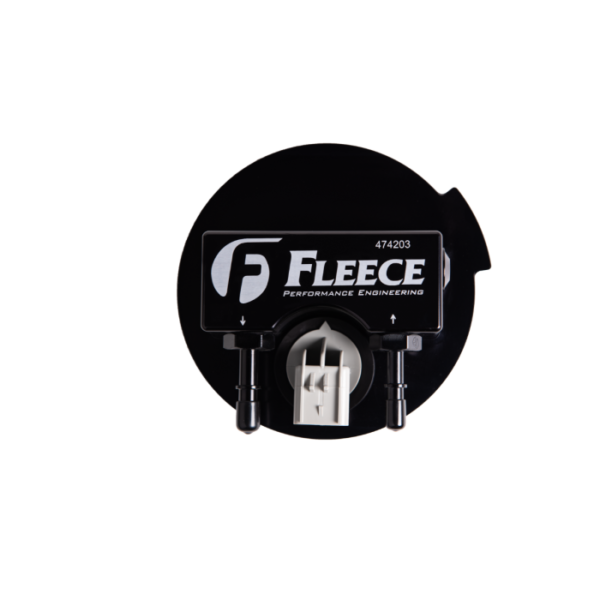

Direct In-Tank Replacement
The PowerFlo Lift Pump installs in the original fuel-tank opening and is designed to retain the factory fuel-system connections.
Because the system uses the original tank opening, installation does not require cutting the tank for a sump or adding a separate draw straw.

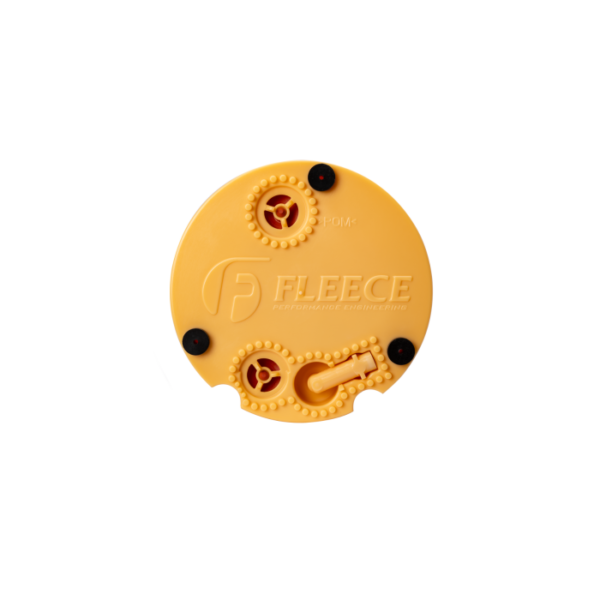

Dual Gerotor Pump Design
The PowerFlo uses two gerotor-style pumps to increase fuel-flow capacity and provide additional pumping capability over the original factory lift pump.
Fleece Performance rates the system for stock and modified applications producing up to 800 horsepower, including certain dual-CP3 fuel-system configurations.

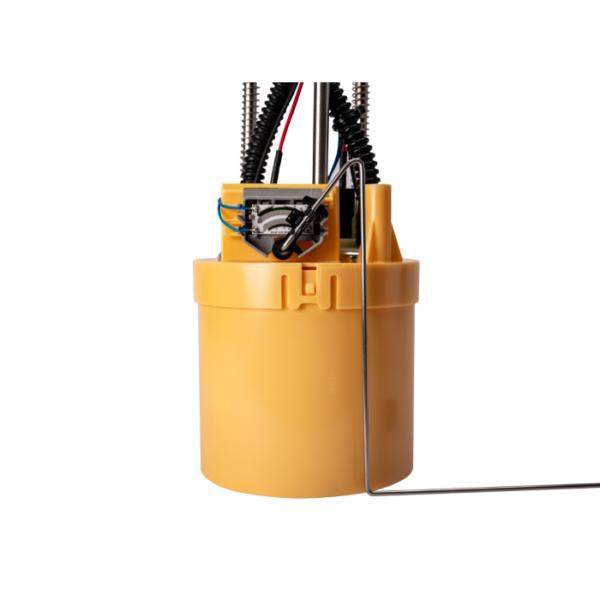

Active Fill Bucket
The active fill bucket is designed to maintain fuel around the pump assembly and help reduce fuel-starvation concerns commonly associated with high-flow draw straws and external tank sumps.
This design supports consistent fuel delivery without requiring an external pickup system.

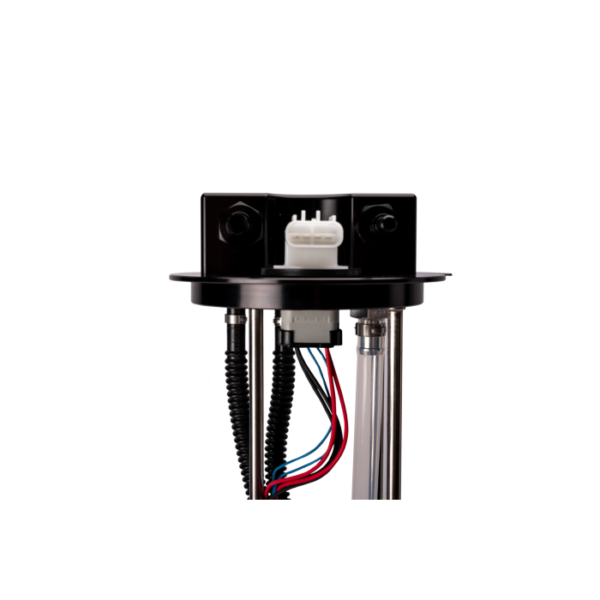

Aftermarket Fuel-System Capability
The pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4″-16 threads.
This allows the PowerFlo assembly to be used with certain aftermarket fuel lines, filters, and custom fuel-system configurations.
Application Notes
- Operating Pressure: Approximately 18–20 PSI at idle
- Biodiesel Compatibility: Validated by Fleece Performance for fuel containing up to 20% biodiesel
- Cab and Chassis: Not compatible with cab-and-chassis applications
- 2020 and Newer 50-Gallon Tank: Not compatible with trucks equipped with the factory-installed 50-gallon fuel-tank option
- Aftermarket Tank Compatibility: Refer to the Fleece Performance fitment documents before using the pump with Titan or S&B replacement fuel tanks
Cross-Reference
| Year | Fleece Part Number | Dodge/Ram OE References |
|---|---|---|
| 2005–2009 | FPE-34560 | RL143160AB, 5143160AA, 5143160AB, 68002062AB, 68003465AA |
| 2010 | FPE-34561 | 68084965AB |
| 2011–2024 | FPE-34562 | 5145571AA, 5145571AB, 5145625AA |
Product Specifications
- Part Number: FPE-34562
- Application: 2011–2024 Ram 2500 and Ram 3500
- Engine: 6.7L 24-Valve Cummins
- Pump Type: Dual-gerotor in-tank lift pump
- Maximum Supported Power: Up to 800 HP as rated by Fleece Performance
- Operating Pressure: 18–20 PSI at idle
- Outlet and Return Threads: 3/4″-16 for -8 O-ring fittings
- UPC: 635909312260
- Shipping Weight: 12 lbs
Interchange Numbers
- 5145571AA
- 5145571AB
- 5145625AA
Product Video
Certifications
- CARB Executive Order: D-834-12
- SEMA Certification: SC-FLC01-0082
Warranty
Installation Resources
Trademark Information
Protected under U.S. Trademark Registration No. 6,878,860.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment, vehicle configuration, fuel-tank compatibility, emissions requirements, and installation requirements before ordering. This product is not compatible with cab-and-chassis applications or 2020-and-newer trucks equipped with the factory 50-gallon fuel tank.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2011–2024 | Dodge/Ram | Ram 2500 | 6.7L 24-Valve Cummins |
| 2011–2024 | Dodge/Ram | Ram 3500 | 6.7L 24-Valve Cummins |
