Product Overview

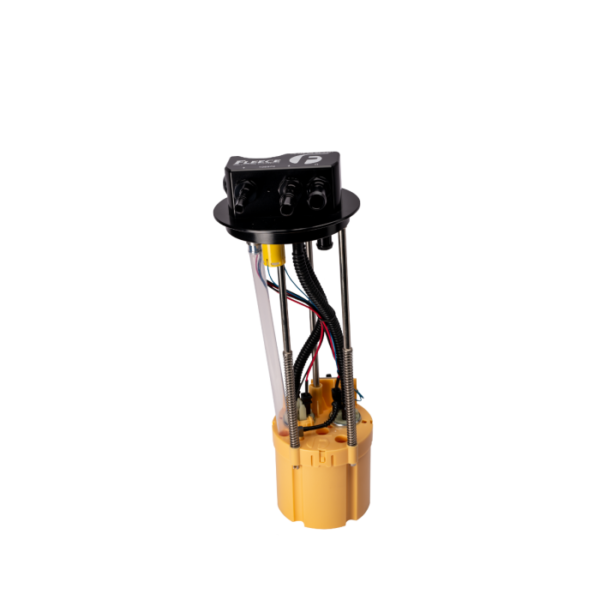

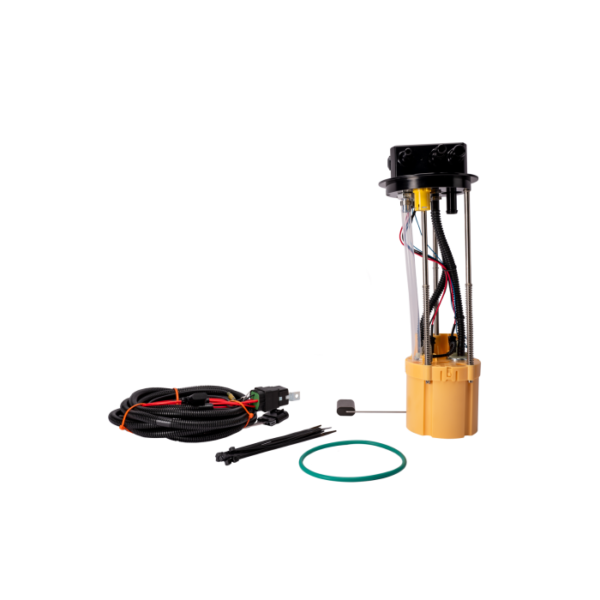

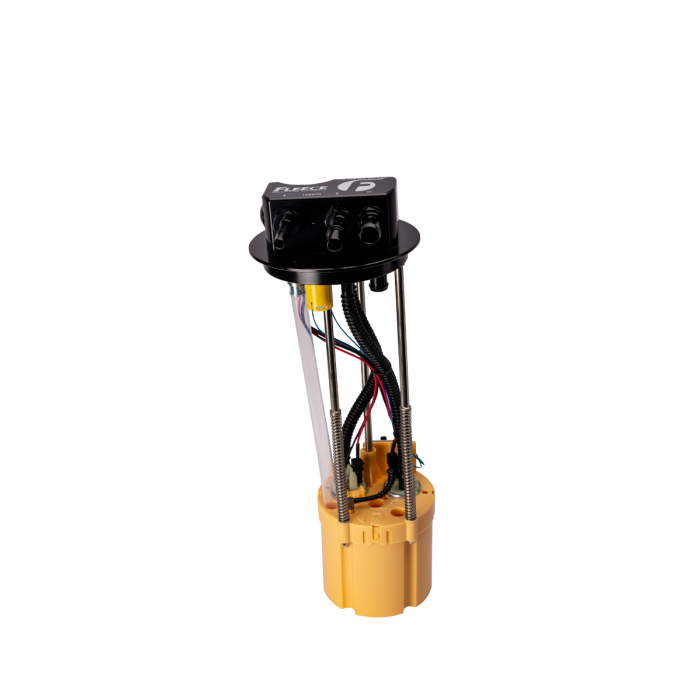

Fleece Performance PowerFlo In-Tank Lift Pump for 2004.5–2007 Chevrolet/GMC Duramax 6.6L
The Fleece Performance PowerFlo Lift Pump is a direct in-tank fuel-supply upgrade designed for compatible 2004.5–2007 Classic Chevrolet Silverado and GMC Sierra 2500 and 3500 pickup trucks equipped with the 6.6L Duramax.
The PowerFlo supplies positive fuel pressure to the CP3 injection pump, helping reduce strain on the high-pressure pump while supporting stock and modified Duramax applications.
Its dual-gerotor design provides increased fuel-flow capacity while retaining the factory fuel lines and an integrated in-tank installation. Fleece Performance rates the system to support applications producing up to 800 horsepower.
Key Benefits
- Positive CP3 Fuel Supply: Provides positive pressure to the CP3 injection pump to help reduce inlet-side strain.
- Direct In-Tank Replacement: Installs in the factory sending-unit location while retaining the original fuel lines.
- Dual Gerotor Pumps: Provides increased fuel-flow capability and additional pumping capacity.
- High-Flow Support: Rated by Fleece Performance to support applications producing up to 800 horsepower.
- Active Fill Bucket: Helps maintain fuel around the pump assembly at lower tank levels.
- No External Sump Required: Eliminates the need to cut the tank for a sump or add a separate draw straw.
- Aftermarket Fuel-System Capability: Threaded ports support certain custom fuel-line and filtration configurations.
Direct In-Tank Replacement
The PowerFlo Lift Pump installs in the factory fuel-tank opening and retains the original fuel-line connections.
This integrated design avoids the need for an external tank sump or separate draw-straw pickup.

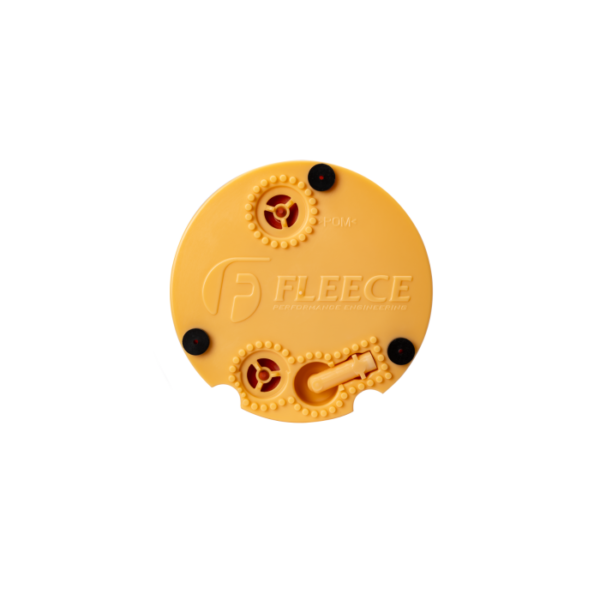

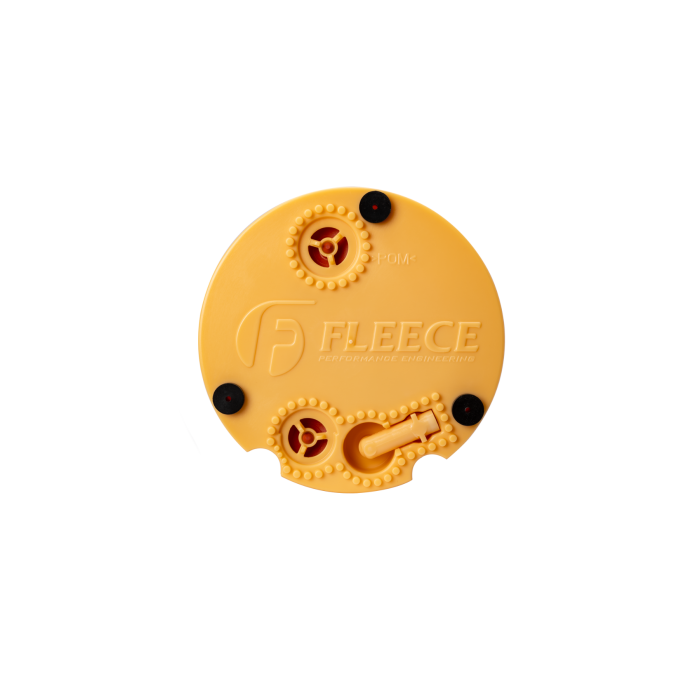

Dual Gerotor Pump Design
The PowerFlo uses two gerotor-style pumps to increase fuel-flow capacity and provide dependable fuel delivery for stock and modified Duramax applications.
Fleece Performance rates the system to support applications producing up to 800 horsepower when properly installed and matched to the vehicle’s fuel requirements.

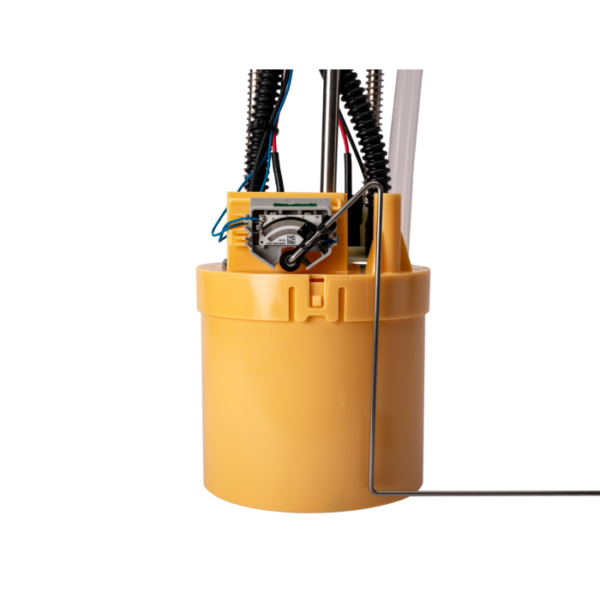

Active Fill Bucket
The active fill bucket is designed to keep fuel around the pump assembly and help reduce fuel-starvation concerns sometimes associated with high-flow draw straws and external sumps.
This design supports a more consistent fuel supply while retaining an in-tank pickup arrangement.

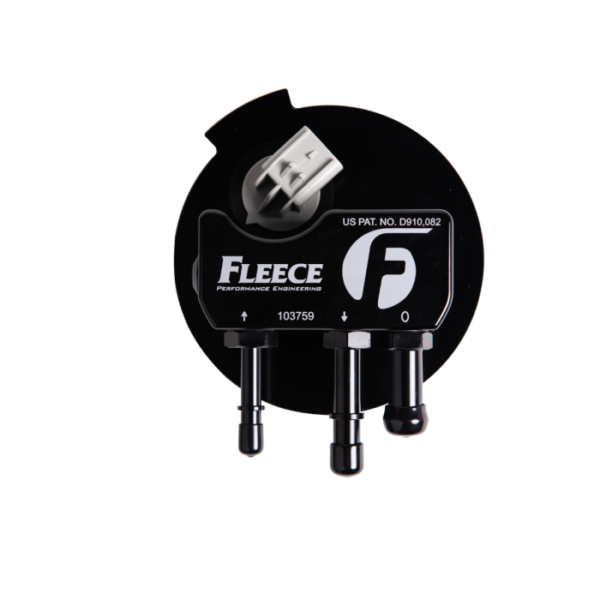

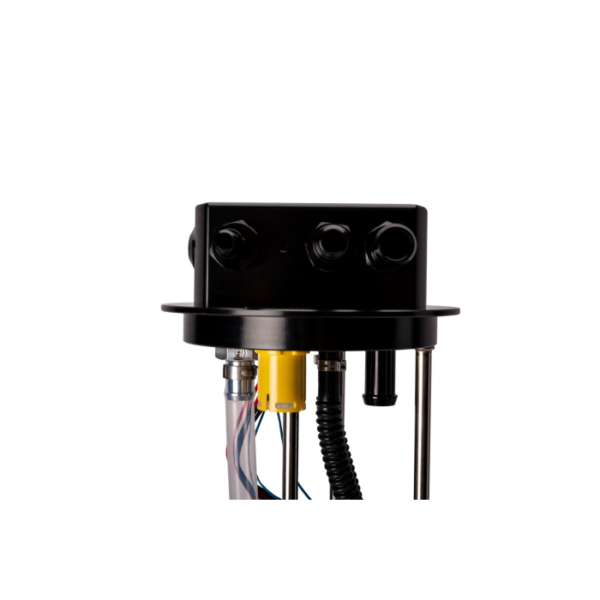

Aftermarket Fuel-System Capability
The pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4″-16 threads.
This allows the PowerFlo assembly to be used with certain aftermarket fuel lines, filters, and custom fuel-system configurations.
Application Notes
- Operating Pressure: Approximately 10–13 PSI at idle
- Fuel-Tank Configuration: For single-fuel-tank configurations only
- Vehicle Configuration: Intended for pickup-style trucks
- Cab and Chassis: Verify the original pump part number against the cross-reference information before ordering for a cab-and-chassis application.
- Titan Fuel Tanks: Compatible with certain Titan replacement tanks when confirmed through the Fleece Performance fitment guide.
- S&B Fuel Tanks: Not compatible with S&B replacement fuel tanks.
- Biodiesel Compatibility: Validated by Fleece Performance for fuel containing up to 20% biodiesel
- 2007 Fitment: Limited to Classic body-style applications listed in the fitment table.
Cross-Reference
| Fleece Part Number | GM/Chevrolet OE References |
|---|---|
| FPE-34789 | 19152169, 19206540, 19303427, 19303428, 19331306, 19331307, MU1228 |
Product Specifications
- Part Number: FPE-34789
- Application: 2004.5–2007 Classic Chevrolet Silverado and GMC Sierra 2500/3500
- Engine: 6.6L Duramax
- Pump Type: Dual-gerotor in-tank lift pump
- Maximum Supported Power: Up to 800 HP as rated by Fleece Performance
- Operating Pressure: 10–13 PSI at idle
- Outlet and Return Threads: 3/4″-16 for -8 O-ring fittings
- Fuel-Tank Requirement: Single-tank configuration
- UPC: 670875716780
- Shipping Weight: 12 lbs
Interchange Numbers
- 19152169
- 19206540
- 19303427
- 19303428
- 19331306
- 19331307
- MU1228
Product Videos
Certifications
- CARB Executive Order: D-834-11
- SEMA Certification: SC-FLC01-0051
Warranty
Installation Resources
Patent and Trademark Information
Protected under U.S. Patent No. D910,082 and U.S. Trademark Registration No. 6,878,860.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment, engine code, body style, fuel-tank configuration, original pump part number, emissions requirements, and installation requirements before ordering. This product is for compatible single-tank pickup applications and does not fit S&B replacement fuel tanks.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2004.5–2005 | Chevrolet | Silverado 2500 / Silverado 3500 | 6.6L LLY Duramax |
| 2004.5–2005 | GMC | Sierra 2500 / Sierra 3500 | 6.6L LLY Duramax |
| 2006 | Chevrolet | Silverado 2500 / Silverado 3500 | 6.6L LLY/LBZ Duramax |
| 2006 | GMC | Sierra 2500 / Sierra 3500 | 6.6L LLY/LBZ Duramax |
| 2007 Classic | Chevrolet | Silverado 2500 / Silverado 3500 | 6.6L LLY/LBZ Duramax |
| 2007 Classic | GMC | Sierra 2500 / Sierra 3500 | 6.6L LLY/LBZ Duramax |
