Product Overview
Fleece Performance PowerFlo Lift Pump for 2011–2016 Ford Powerstroke 6.7L — Short Bed
The Fleece Performance PowerFlo Lift Pump is a direct in-tank replacement designed for 2011–2016 Ford F-250, F-350, and F-450 trucks equipped with the 6.7L Powerstroke and a short-bed fuel-tank configuration.
This kit replaces the factory in-tank sending unit and the original frame-mounted pump and filter assembly. It includes the PowerFlo lift pump, a new frame-mounted filter base, Donaldson fuel filter, wiring components, water-in-fuel sensor, and the hardware needed for installation.
The system is designed to retain the factory fuel lines, wiring connections, water-in-fuel monitoring, and diagnostic functionality without cutting or modifying the fuel tank.
Key Benefits
- Direct In-Tank Replacement: Replaces the factory sending unit while retaining the original fuel-line layout.
- Complete Filtration Upgrade: Includes a frame-mounted filter base and Donaldson fuel filter.
- No Tank Cutting or Sump: Installs without drilling a sump opening or adding an external draw straw.
- Plug-and-Play Integration: No cutting or splicing of the factory wiring harness or fuel lines is required.
- High-Flow Capability: Fleece Performance rates the dual-pump system to support applications producing up to 800 horsepower.
- Fuel-Level Monitoring: Includes an integral fuel-level sending unit.
- Factory Diagnostics Retained: Maintains the water-in-fuel sensor and related factory diagnostic functions.

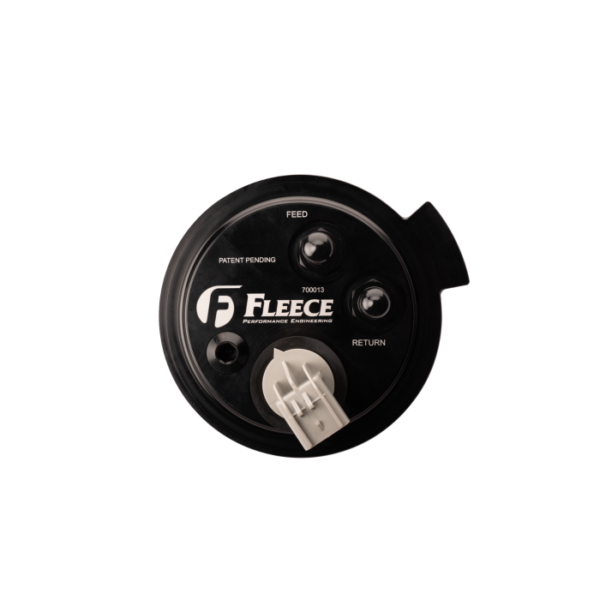

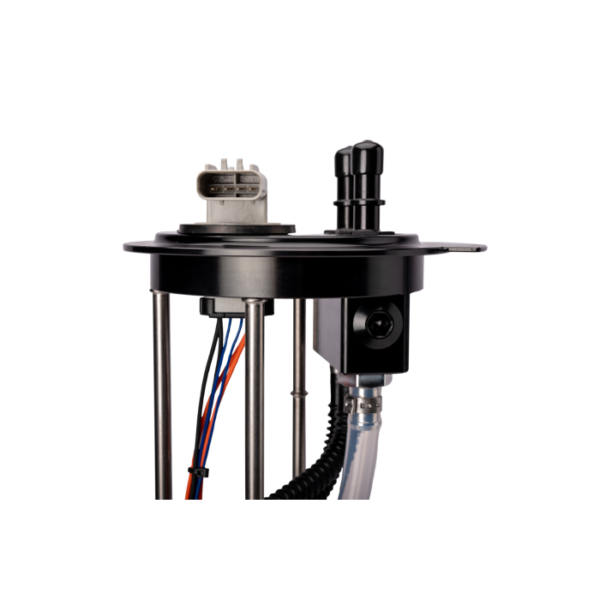

Direct In-Tank Replacement
The PowerFlo assembly installs in the factory fuel-tank location and retains the original fuel lines and water-in-fuel sensor system.

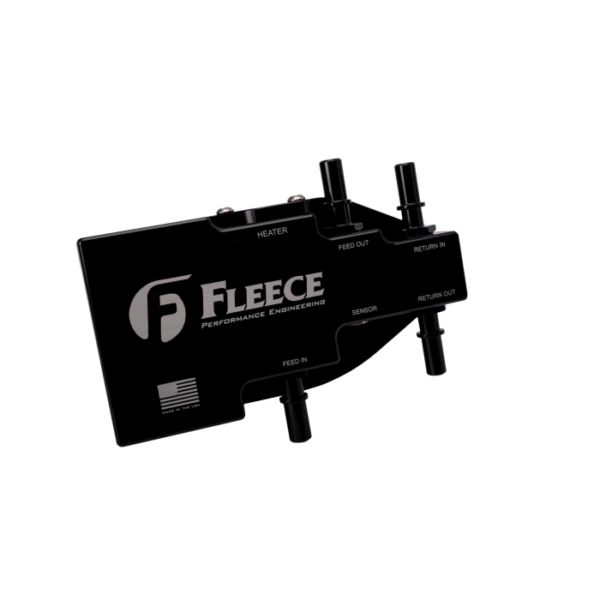

The new frame-mounted filter base installs in the original filter-housing location, helping maintain a clean installation without requiring major changes to the factory fuel system.
Dual Gerotor Pump Design
The PowerFlo uses two quiet gerotor-style pumps to provide increased flow capacity and additional pumping capability compared with the original factory lift-pump arrangement.
Fleece Performance rates the system to support applications producing up to 800 horsepower when properly installed and matched to the vehicle’s fuel-system requirements.

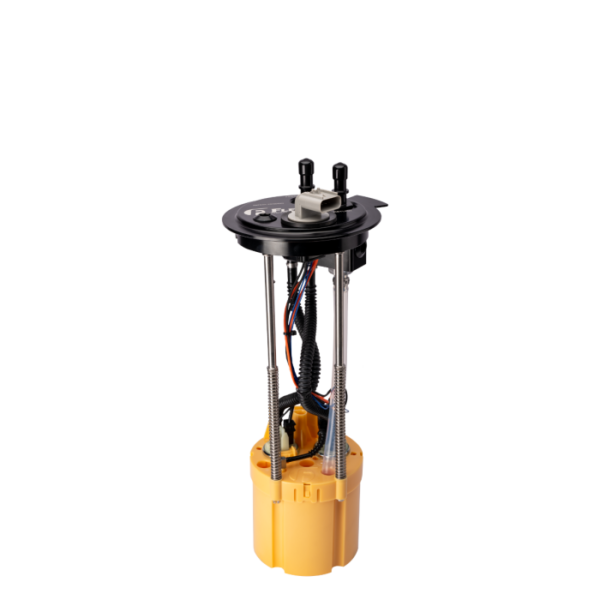

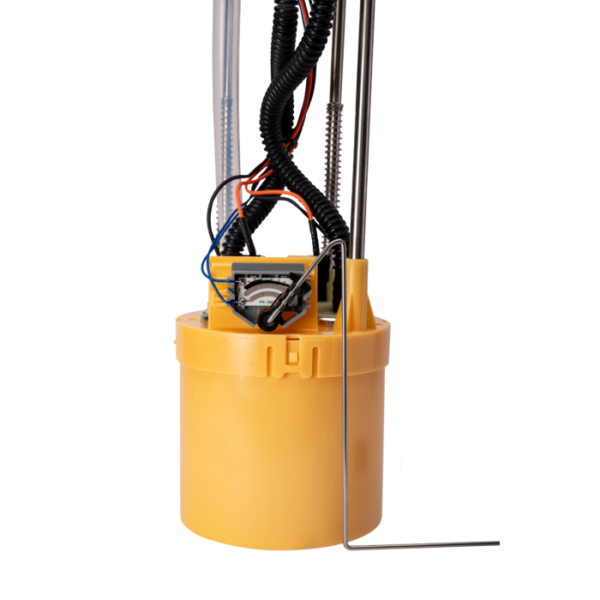

Active Fill Bucket
The active fill bucket is designed to keep fuel around the pump assembly and help reduce fuel-starvation concerns at lower tank levels.
This design eliminates the need for an external tank sump or draw straw while maintaining an integrated in-tank fuel pickup.
Aftermarket Fuel-System Compatibility
The pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4″-16 threads, allowing the pump to be used with certain custom fuel-line configurations.
Fleece Performance reports that this product has been tested with 2011–2016 trucks equipped with the following S&S Diesel Motorsport components:
- DCR injection-pump conversion kit
- CP4 Disaster Prevention Kit

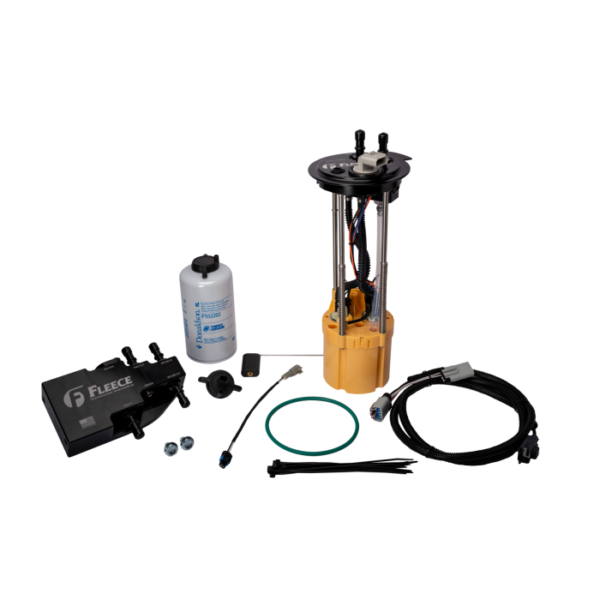

Kit Includes
- PowerFlo Lift Pump with integral fuel-level sender
- Frame-mounted filter base
- Donaldson P553203 Fuel Filter
- Provision for an optional fuel heater
- Water-in-fuel sensor
- Chassis wiring harness
- Water-in-fuel sensor extension harness
- Fuel-sending-unit tank O-ring
- Required mounting hardware

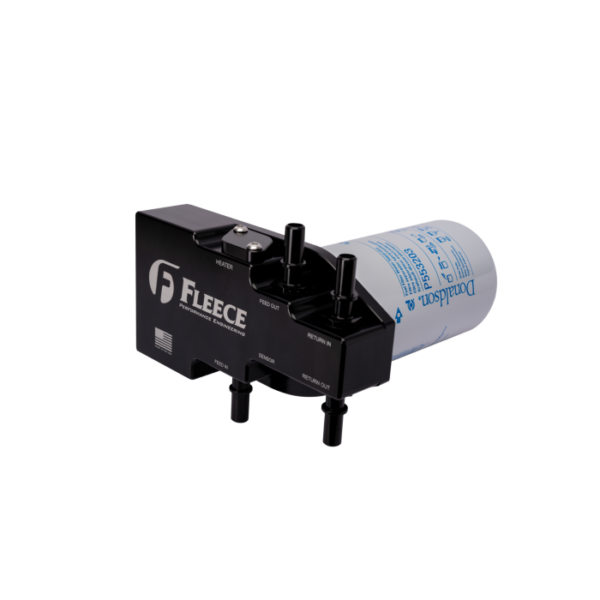

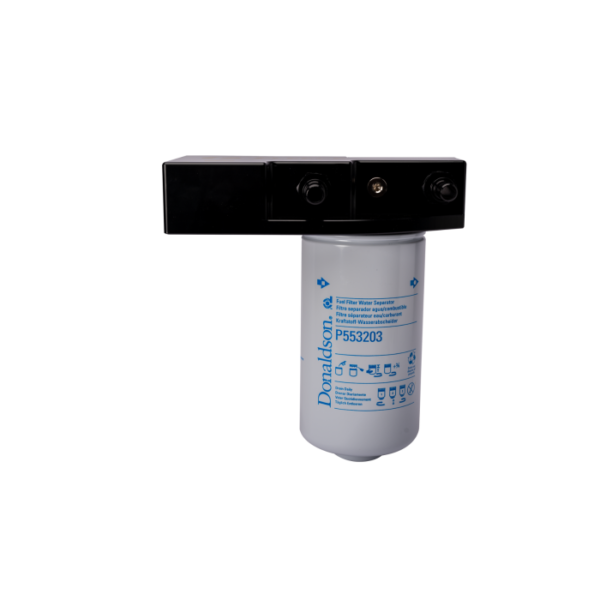

Filter Information
- Filter Manufacturer: Donaldson
- Filter Part Number: P553203
- Filter Rating: 4 micron at 99% efficiency
- Fuel-Heater Provision: Integrated into the filter-base design
Application Notes
- Operating Pressure: Approximately 65–70 PSI at idle
- Bed Configuration: Short-bed applications
- Biodiesel Compatibility: Validated by Fleece Performance for fuel containing up to 20% biodiesel
- Aftermarket Tank Compatibility: Confirmed by Fleece Performance for certain Titan and S&B aftermarket fuel tanks
- Fuel-Heater Compatibility: Compatible with the optional Fleece Performance FPE-FH-FMC fuel heater
- Under-Hood Filter Upgrade: Can be paired with Fleece Performance part number FPE-FMC-UHFA-1123
Cross-Reference
| Application | Fleece Part Number | Ford OE Reference |
|---|---|---|
| 2011–2016 Short Bed | FPE-PF-FMC-1116-SB | BC3Z-9275-A and BC3Z-9A299-A |
| 2011–2016 Long Bed | FPE-PF-FMC-1116-LB | BC3Z-9275-B and BC3Z-9A299-G |
Product Specifications
- Product Part Number: FPE-PF-FMC-1116-SB
- Application: 2011–2016 Ford F-250, F-350, and F-450
- Engine: 6.7L Powerstroke
- Bed Configuration: Short Bed
- Operating Pressure: 65–70 PSI at idle
- Maximum Supported Power: Up to 800 HP as rated by Fleece Performance
- UPC: 670875719231
- Shipping Weight: 20 lbs
Interchange Numbers
- BC3Z-9275-A
- BC3Z-9A299-A
Product Videos
Certification
CARB Executive Order: D-834-18
Warranty
Installation Resources
Patent and Trademark Information
Protected under a pending U.S. patent and U.S. Trademark Registration No. 6,878,860.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment, bed length, fuel-tank compatibility, emissions requirements, and installation requirements before ordering.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2011–2016 | Ford | F-250 | 6.7L Powerstroke |
| 2011–2016 | Ford | F-350 | 6.7L Powerstroke |
| 2011–2016 | Ford | F-450 | 6.7L Powerstroke |
