Product Overview

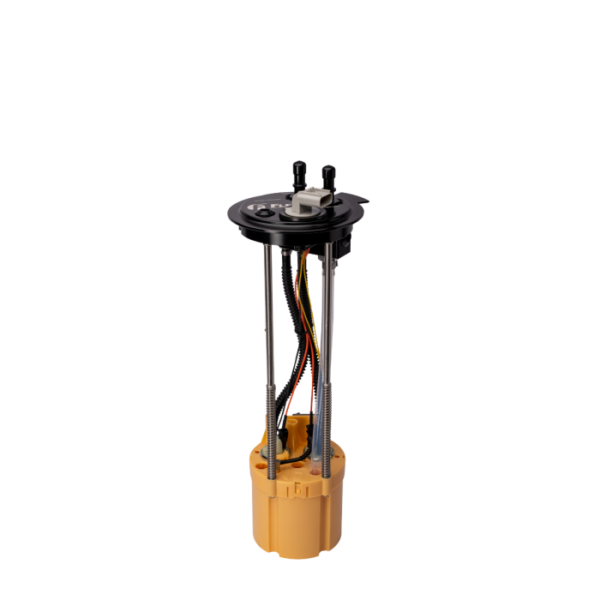

Fleece Performance PowerFlo Lift Pump for 2011–2016 Ford Powerstroke 6.7L — Long Bed
The Fleece Performance PowerFlo Lift Pump is a direct in-tank fuel-system upgrade designed for compatible 2011–2016 Ford F-250, F-350, and F-450 trucks equipped with the 6.7L Powerstroke and a long-bed fuel-tank configuration.
This kit replaces the factory in-tank sending unit and original frame-mounted pump and filter assembly. It includes the PowerFlo lift pump, a new frame-mounted filter base, Donaldson fuel filter, water-in-fuel sensor, wiring components, tank O-ring, and required mounting hardware.
The plug-and-play design retains the factory fuel lines, wiring connections, water-in-fuel monitoring, and diagnostic functionality without requiring cutting, splicing, or modification of the factory fuel tank.
Key Benefits
- Direct In-Tank Replacement: Replaces the factory sending unit while retaining the original fuel-line arrangement.
- Complete Filtration Upgrade: Includes a new frame-mounted filter base and Donaldson fuel filter.
- No Tank Cutting or Sump: Installs without drilling the fuel tank for a sump or adding an external draw straw.
- Plug-and-Play Installation: No cutting or splicing of the factory wiring harness or fuel lines is required.
- High-Flow Capability: Fleece Performance rates the dual-pump system to support applications producing up to 800 horsepower.
- Fuel-Level Monitoring: Includes an integral fuel-level sending unit.
- Factory Diagnostics Retained: Maintains the water-in-fuel sensor and associated factory diagnostic functions.
Direct In-Tank Replacement

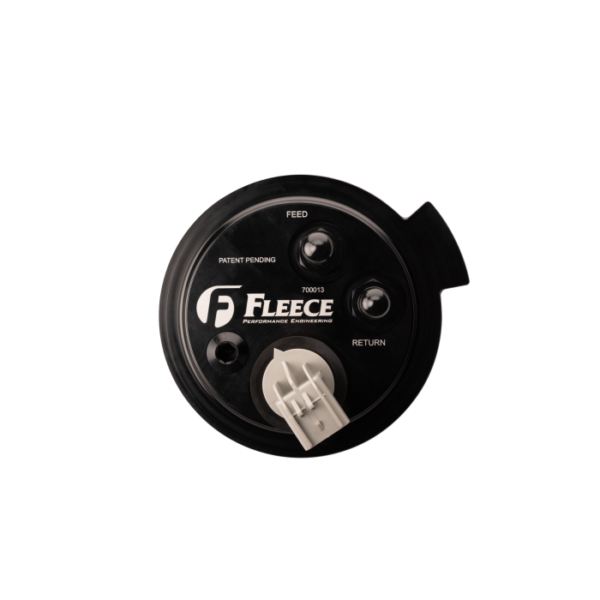

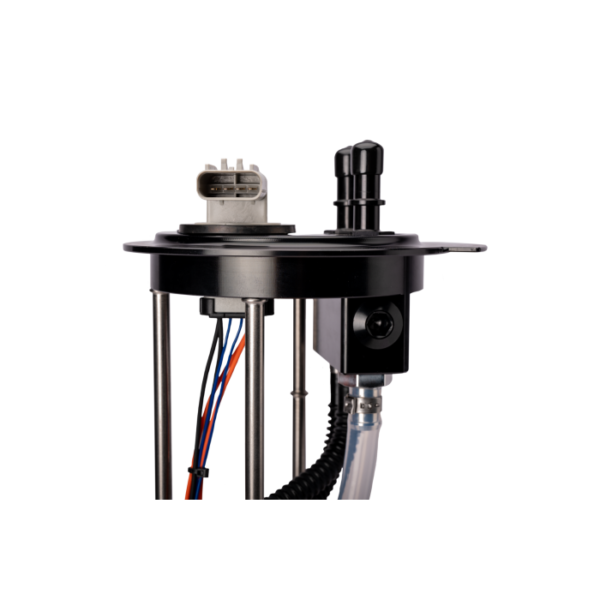

The PowerFlo assembly installs in the factory fuel-tank opening and retains the original fuel lines and water-in-fuel monitoring system.

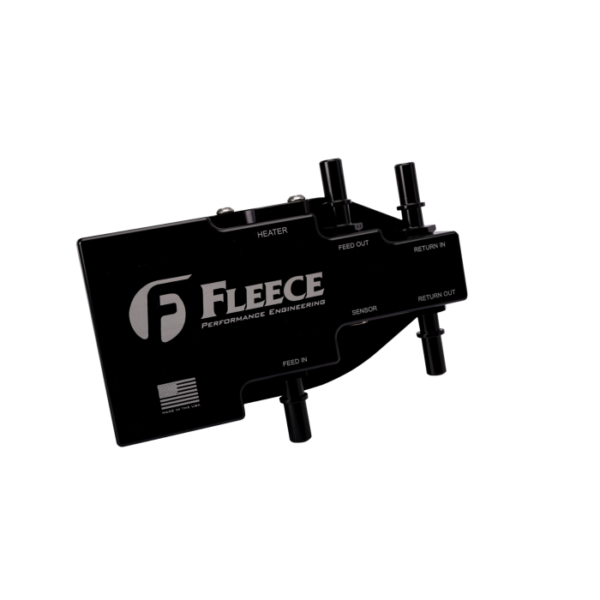

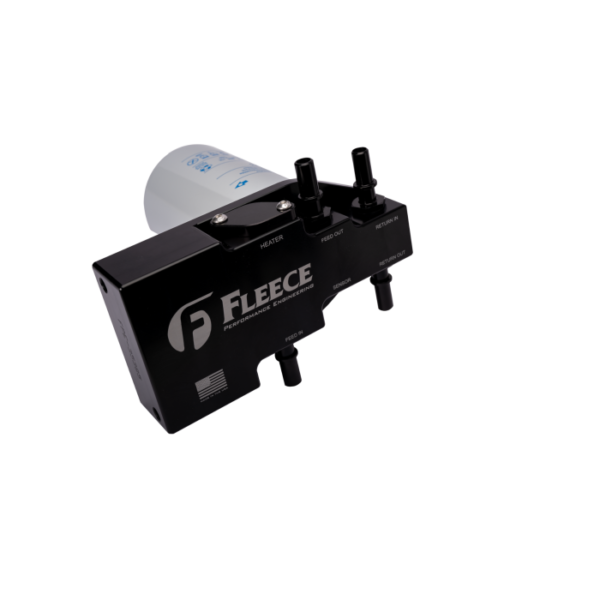

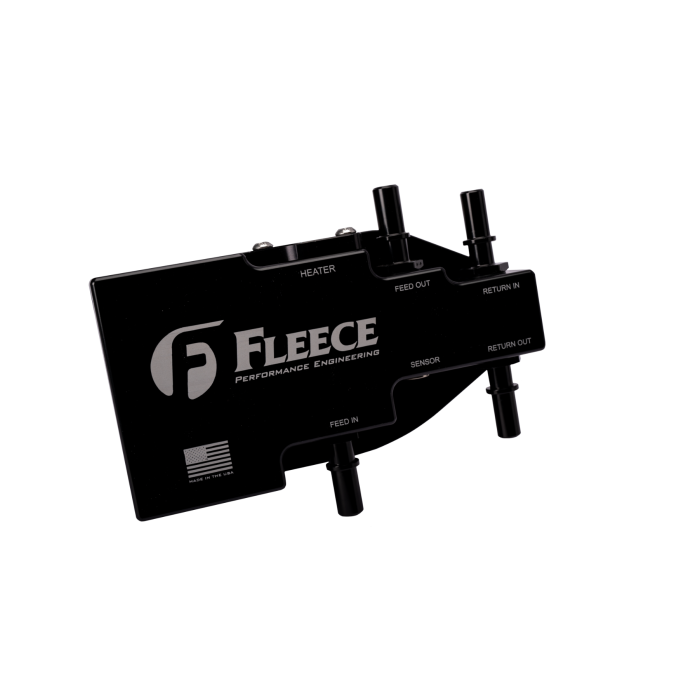

The included frame-mounted filter base installs in the original filter-housing location, helping maintain an organized installation without requiring extensive changes to the factory fuel system.
Dual Gerotor Pump Design
The PowerFlo uses two quiet gerotor-style pumps to increase fuel-flow capacity and provide additional pumping capability compared with the original factory lift-pump arrangement.
Fleece Performance rates the system to support applications producing up to 800 horsepower when properly installed and matched to the truck’s fuel-system requirements.

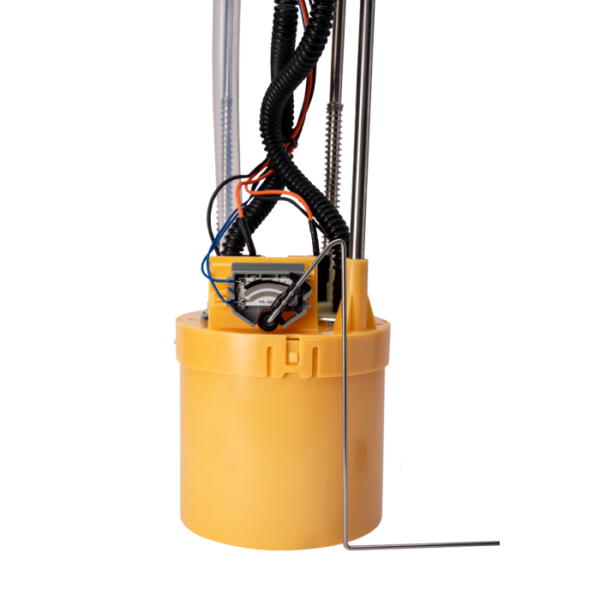

Active Fill Bucket
The active fill bucket is designed to keep fuel around the pump assembly and help reduce fuel-starvation concerns at lower fuel levels.
This integrated design eliminates the need for an external tank sump or draw straw while retaining an in-tank fuel pickup.
Aftermarket Fuel-System Compatibility
The pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4″-16 threads, allowing the PowerFlo assembly to be used with certain custom fuel-line configurations.
Fleece Performance reports that the system has been tested with 2011–2016 trucks equipped with the following S&S Diesel Motorsport components:
- DCR injection-pump conversion kit
- CP4 Disaster Prevention Kit

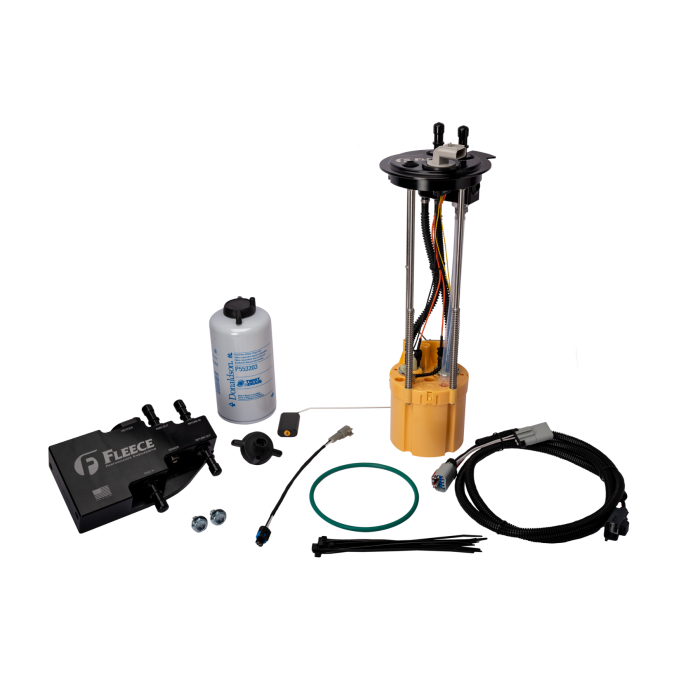

Kit Includes
- PowerFlo Lift Pump with integral fuel-level sender
- Frame-mounted filter base
- Donaldson P553203 Fuel Filter
- Provision for an optional fuel heater
- Water-in-fuel sensor
- Chassis wiring harness
- Water-in-fuel sensor extension harness
- Fuel-sending-unit tank O-ring
- Required mounting hardware

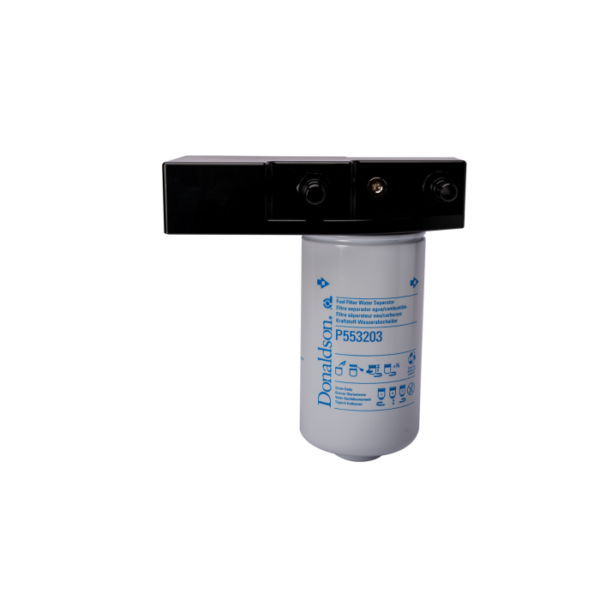

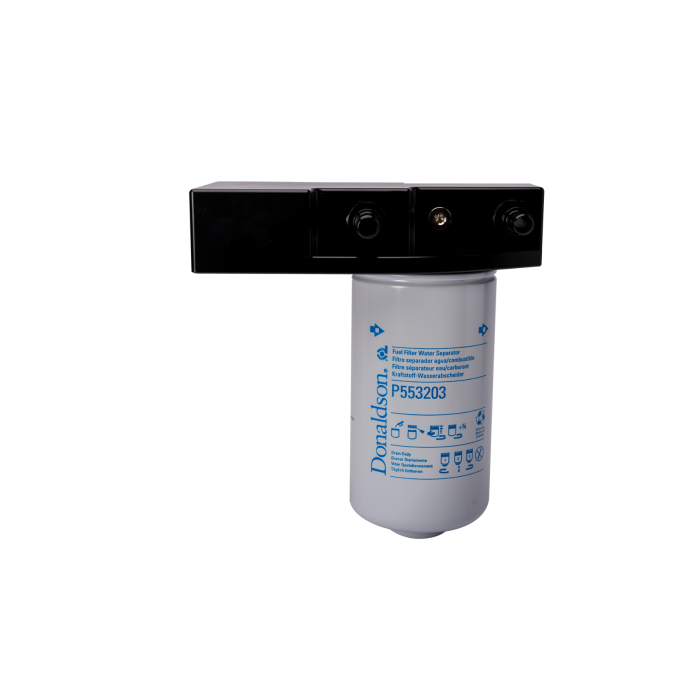

Filter Information
- Filter Manufacturer: Donaldson
- Filter Part Number: P553203
- Filter Rating: 4 micron at 99% efficiency
- Fuel-Heater Provision: Integrated into the filter-base design
Application Notes
- Operating Pressure: Approximately 65–70 PSI at idle
- Bed Configuration: Long-bed applications
- Biodiesel Compatibility: Validated by Fleece Performance for fuel containing up to 20% biodiesel
- Aftermarket Tank Compatibility: Confirmed by Fleece Performance for certain Titan and S&B aftermarket fuel tanks
- Fuel-Heater Compatibility: Compatible with the optional Fleece Performance FPE-FH-FMC fuel heater
- Under-Hood Filter Upgrade: Can be paired with Fleece Performance part number FPE-FMC-UHFA-1123
Cross-Reference
| Application | Fleece Part Number | Ford OE Reference |
|---|---|---|
| 2011–2016 Short Bed | FPE-PF-FMC-1116-SB | BC3Z-9275-A and BC3Z-9A299-A |
| 2011–2016 Long Bed | FPE-PF-FMC-1116-LB | BC3Z-9275-B and BC3Z-9A299-G |
Product Specifications
- Product Part Number: FPE-PF-FMC-1116-LB
- Application: 2011–2016 Ford F-250, F-350, and F-450
- Engine: 6.7L Powerstroke
- Bed Configuration: Long Bed
- Operating Pressure: 65–70 PSI at idle
- Maximum Supported Power: Up to 800 HP as rated by Fleece Performance
- UPC: 670875719286
- Shipping Weight: 20 lbs
Interchange Numbers
- BC3Z-9275-B
- BC3Z-9A299-G
Product Videos
Certification
CARB Executive Order: D-834-18
Warranty
Installation Resources
Patent and Trademark Information
Protected under a pending U.S. patent and U.S. Trademark Registration No. 6,878,860.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment, bed length, fuel-tank compatibility, emissions requirements, and installation requirements before ordering.
Vehicle Fitment
Vehicle applications are listed below. Trim names appear in the Submodel column when available. Check all vehicle details before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011–2016 | Ford | F-250 Super Duty | King Ranch |
| 2011–2016 | Ford | F-250 Super Duty | Lariat |
| 2011–2016 | Ford | F-250 Super Duty | XL |
| 2011–2016 | Ford | F-250 Super Duty | XLT |
| 2011–2016 | Ford | F-350 Super Duty | King Ranch |
| 2011–2016 | Ford | F-350 Super Duty | Lariat |
| 2011–2016 | Ford | F-350 Super Duty | XL |
| 2011–2016 | Ford | F-350 Super Duty | XLT |
| 2013–2016 | Ford | F-250 Super Duty | Platinum |
| 2013–2016 | Ford | F-350 Super Duty | Platinum |
| Year | |
|---|---|
| Make | |
| Model | F-250, F-350 |
| Engine | 6.7L Power Stroke |
| Part Type | Fuel System Upgrade Kit, Lift Pump |
| Brand | Fleece |
