Product Overview
Fleece Performance PowerFlo Fuel System Upgrade Kit for 1998.5–2002 Dodge/Ram 5.9L VP44 Cummins
Upgrade the fuel supply system on your 1998.5–2002 Dodge/Ram 2500 or Ram 3500 equipped with the 5.9L 24-valve VP44 Cummins using the Fleece Performance PowerFlo Fuel System Upgrade Kit.
This complete kit includes the components needed to route, pump, filter, and supply fuel to the engine. It also includes a replacement sending unit and float to help restore proper fuel-gauge operation.
The PowerFlo Lift Pump is an in-tank replacement designed to provide increased fuel flow while retaining an installation layout similar to the original equipment system. Fleece Performance rates the system to support applications producing up to 800 horsepower when properly selected and installed.
Key Benefits
- Complete Fuel-System Upgrade: Includes the primary pump, filtration, plumbing, fittings, sending unit, and mounting components needed for installation.
- In-Tank Installation: Installs without adding an external tank sump or draw straw.
- Improved Fuel Supply: Designed to provide consistent fuel delivery for stock and modified VP44 Cummins applications.
- Fuel-Gauge Support: Includes an integral fuel sender and replacement float to help restore fuel-gauge operation.
- High-Flow Capability: Supports applications producing up to 800 horsepower according to Fleece Performance.
- Added Filtration: Includes a Donaldson 3-micron fuel filter and water separator.
Direct In-Tank Fitment
The PowerFlo Lift Pump is designed to install in the factory fuel-tank location without drilling a sump opening, cutting the tank, or adding an external draw-straw system.
This approach can simplify installation while maintaining an integrated in-tank fuel-supply layout.
Dual Gerotor Pump Design
The PowerFlo system uses two gerotor-style pumps to increase fuel-flow capacity and provide additional pumping capability compared with the original factory lift-pump arrangement.
Fleece Performance rates the system for applications producing up to 800 horsepower, including certain dual-CP3 configurations.

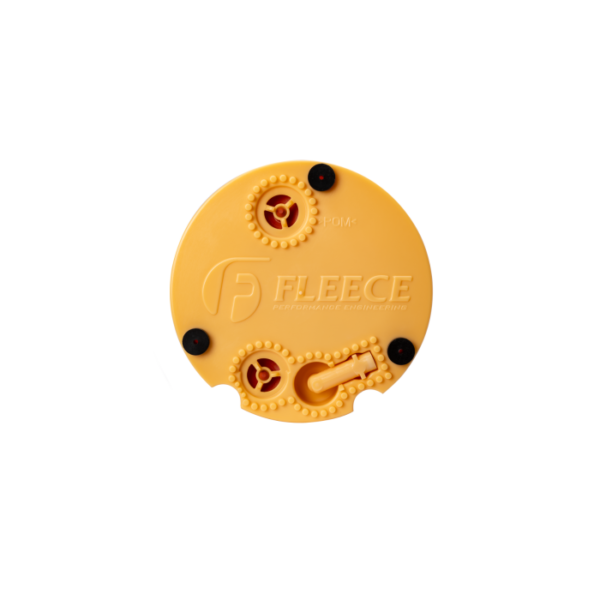

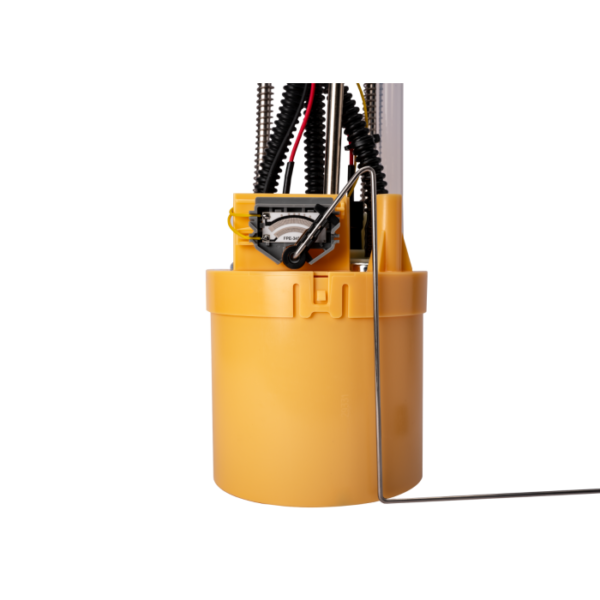

Active Fill Bucket
The active fill bucket is designed to maintain fuel around the pump assembly and help reduce the fuel-starvation concerns sometimes associated with high-flow draw straws or tank sumps.
This design helps support consistent fuel delivery at lower tank levels without requiring an external sump.

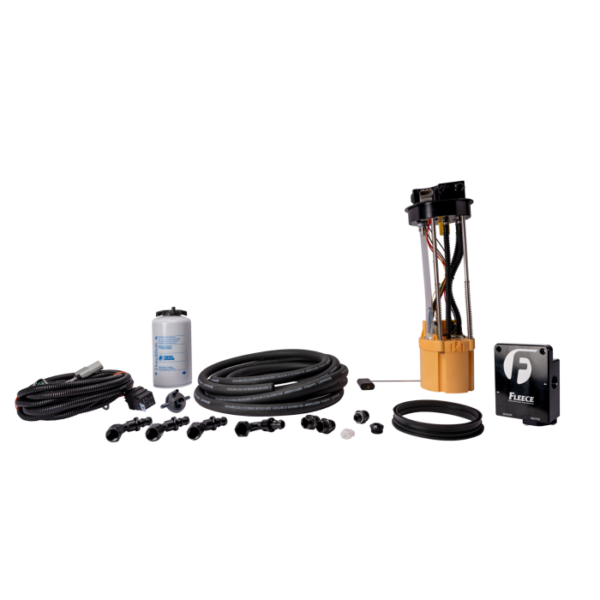

Kit Includes

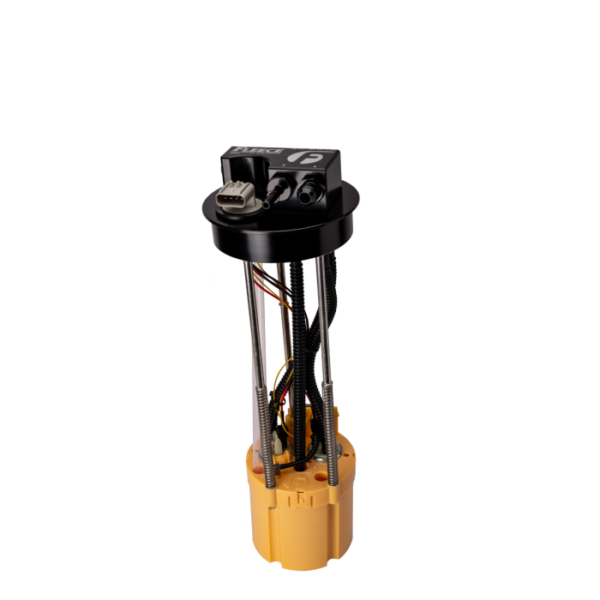

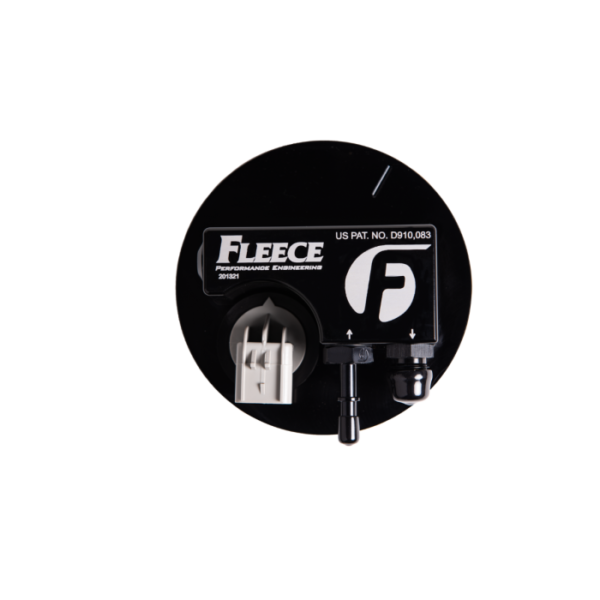

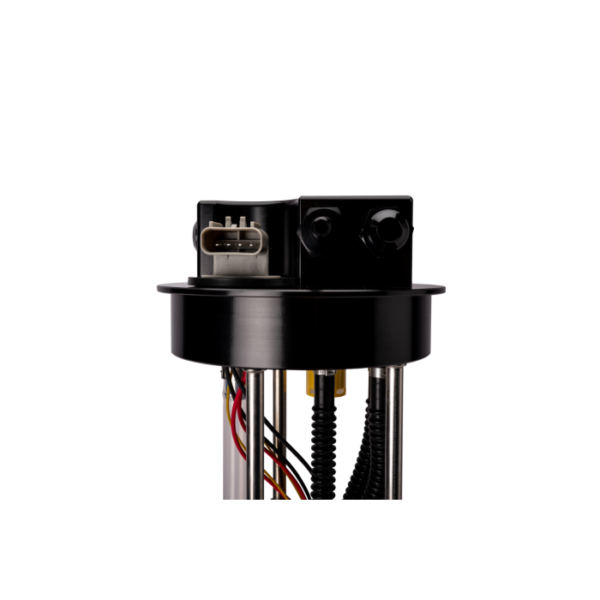

- PowerFlo Lift Pump with integral fuel-sending unit
- Donaldson 3-Micron Fuel Filter and Water Separator — Donaldson P553203

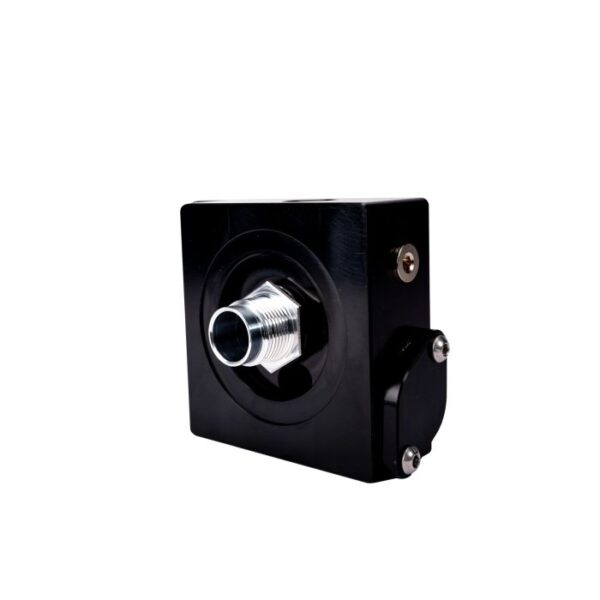

- Filter base with integrated mounting provision
- Distribution filter block and filter coupler
- Push-lock fuel hose
- Required AN fittings and barb fittings
- Replacement fuel sender and float
Application Notes
- Operating Pressure: Approximately 15–17 PSI at idle
- Biodiesel Compatibility: Validated by Fleece Performance for fuel containing up to 20% biodiesel
- Fuel Heater: Optional and sold separately
- Fuel Heater Part Number: FPE-FH-CUMM-GM
- 1998.5–1999 Fuel-Heater Note: These model years require a replacement chassis-side fuel-heater connector pigtail when adding the optional heater.
- Fuel-Heater Connector Pigtail: FPE-HAR-CUMM-FH-PT
Product Specifications
- Application: 1998.5–2002 Dodge/Ram 2500 and Ram 3500
- Engine: 5.9L 24-Valve VP44 Cummins
- Fuel-System Type: In-tank lift-pump and filtration upgrade
- Maximum Supported Power: Up to 800 HP as rated by Fleece Performance
- Operating Pressure: 15–17 PSI at idle
- Fuel Filter: Donaldson P553203
- Filter Rating: 3 micron
- UPC: 670875716742
- Shipping Weight: 18 lbs
Interchange Numbers
- 4897668AF
- 4897668AG
- 4897668AH
- 4897668AI
Certification
SEMA Certification: SC-FLC01-0095
Product Video
Installation Resources
Patent and Trademark Information
Protected under U.S. Patent No. D910,083 and U.S. Trademark Registration No. 6,878,860.
Disclaimer
Verify fitment before ordering. Emissions, warranty, fuel compatibility, and installation requirements may vary by vehicle and location.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 1998.5–2002 | Dodge/Ram | Ram 2500 | 5.9L VP44 24-Valve Cummins |
| 1998.5–2002 | Dodge/Ram | Ram 3500 | 5.9L VP44 24-Valve Cummins |
