Product Overview
Fleece Performance Coolant Bypass Kit for 2013–2018 Dodge/Ram 6.7L Cummins
The Fleece Performance Coolant Bypass Kit is designed for compatible 2013–2018 Ram 2500 and Ram 3500 trucks equipped with the 6.7L 24-valve Cummins.
The rear cylinders of the 6.7L Cummins can receive less coolant flow than the front cylinders, which may contribute to higher localized coolant temperatures and pressure near the rear of the engine block.
This kit adds a secondary, temperature-controlled coolant path intended to improve coolant circulation at the rear cylinders while maintaining an OE-style fit and appearance.
Key Benefits
- Improved Rear-Cylinder Coolant Flow: Adds an additional coolant path at the rear of the engine.
- More Consistent Cylinder Temperatures: Designed to help reduce temperature differences between the front and rear cylinders.
- Temperature-Controlled Operation: Uses a secondary thermostat that opens according to coolant temperature.
- Pressure Management: Improved circulation can help reduce excessive localized cooling-system pressure.
- Complete Installation Kit: Includes thermostat housings, braided coolant hose, AN fittings, gaskets, and mounting hardware.
- OE-Style Integration: Designed to fit cleanly within the factory engine-compartment layout.
How the Coolant Bypass Works
The factory cooling-system layout can leave the rear cylinders with less coolant circulation than the front cylinders. Under demanding operating conditions, this may contribute to increased coolant temperature and localized pressure near the rear of the engine block.
The Fleece Performance Coolant Bypass adds a secondary thermostat and coolant passage at the rear of the engine. As coolant temperature rises, the bypass thermostat opens and allows additional coolant to circulate toward the front of the cooling system.
This temperature-based operation is designed to improve coolant distribution before excessive localized pressure becomes a larger concern.
Cooling-System Protection
By improving coolant circulation at the rear cylinders, the bypass kit is designed to help reduce the conditions that can contribute to excessive cooling-system pressure and freeze-plug concerns.
Actual cooling-system performance can vary based on engine load, vehicle use, cooling-system condition, tuning, installation quality, and other modifications.

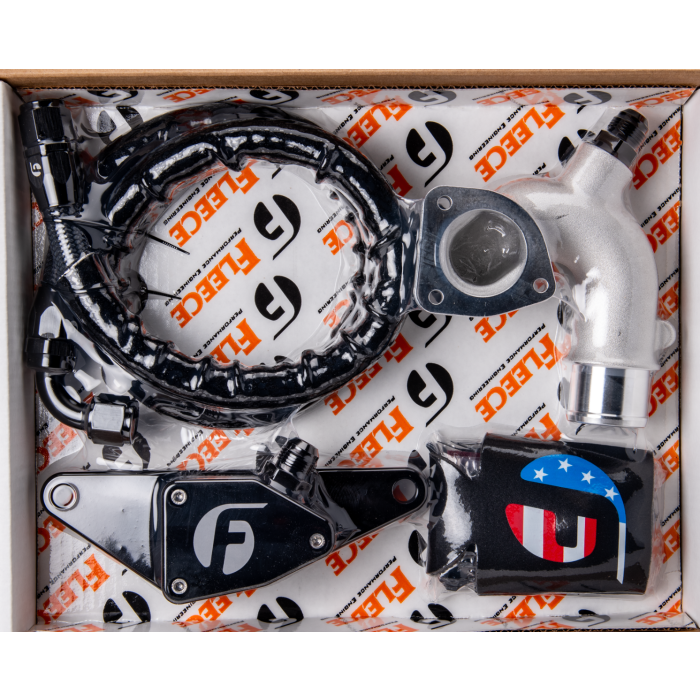

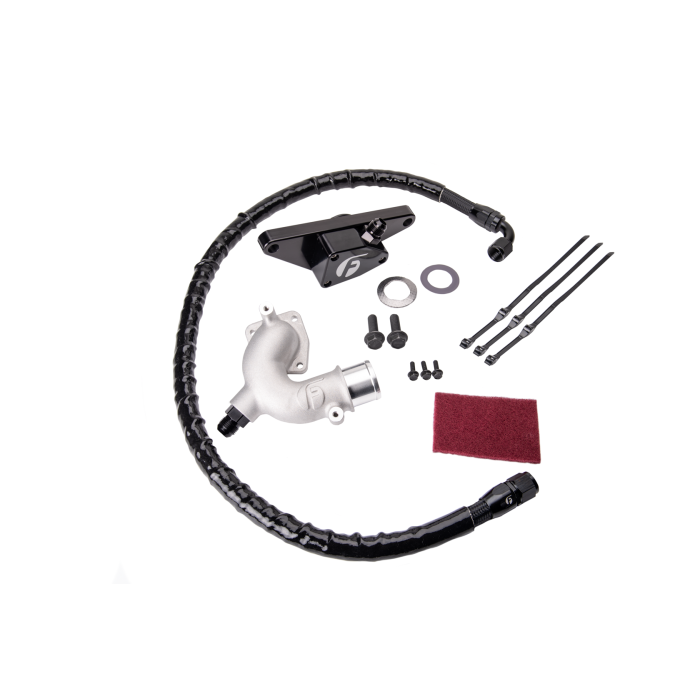

Kit Includes

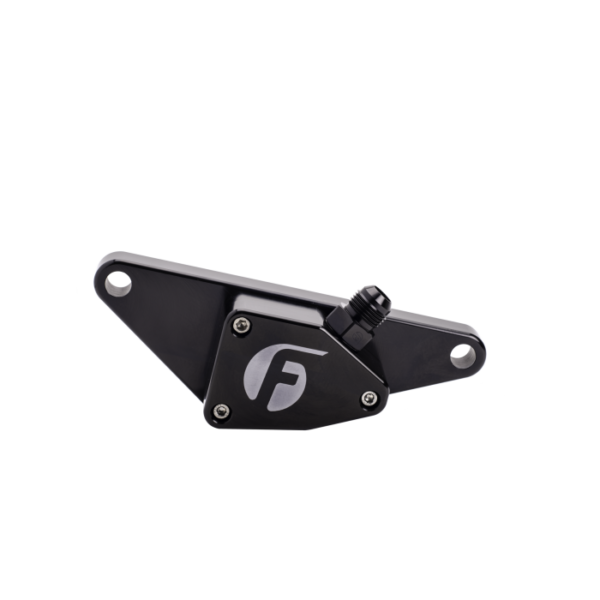

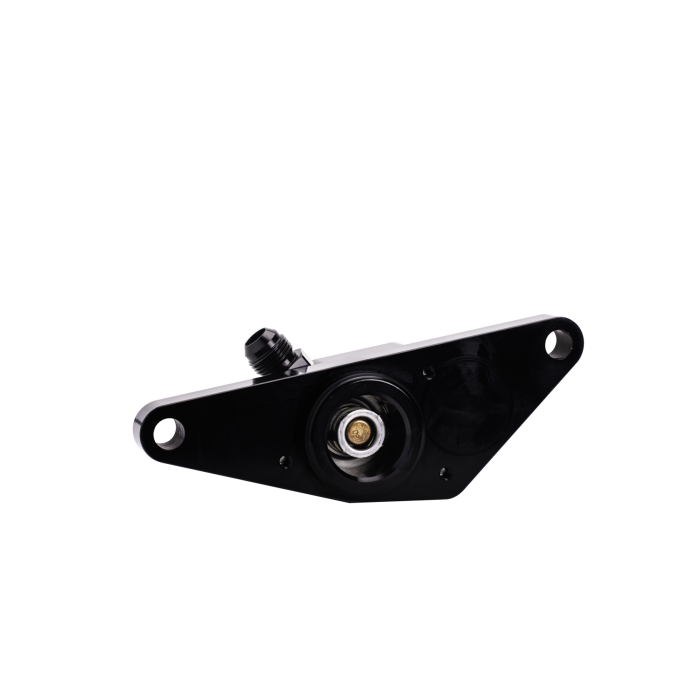

- Rear coolant-bypass thermostat housing

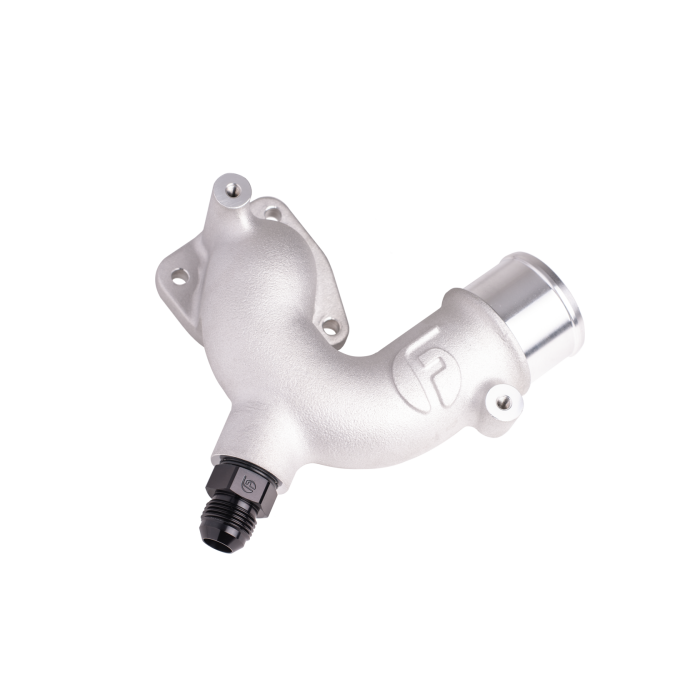

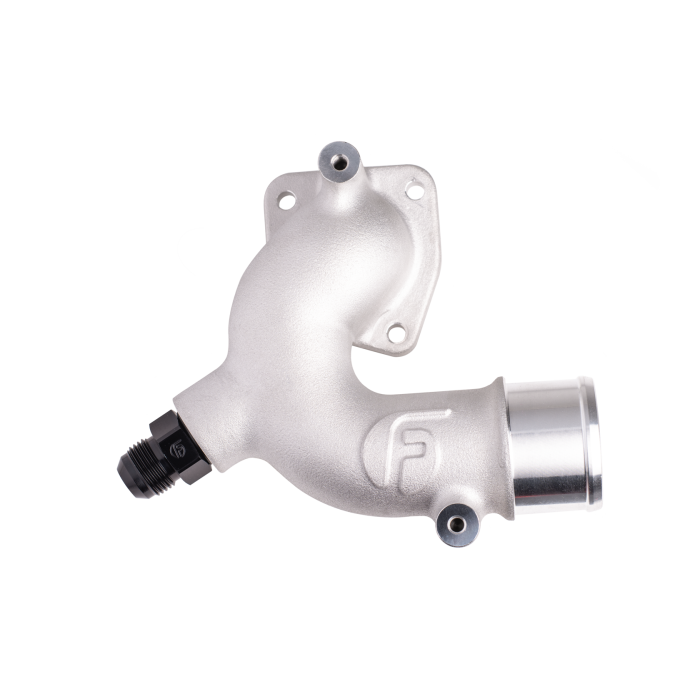

- Front coolant-bypass thermostat housing
- New EGR crossover-tube gaskets
- Black braided nylon coolant-bypass hose
- Protective high-temperature hose sleeve
- AN O-ring fittings
- Required mounting hardware
Application Notes
Some 2007–2018 trucks, including automatic- and manual-transmission applications, may be equipped with a factory transmission-fluid heat exchanger. These heat exchangers are uncommon but may be found more often on trucks originally sold or operated in colder climates.
Trucks equipped with the factory transmission-fluid heat exchanger require an additional heater tube, Chrysler part number 68048997AA, to complete the installation.
- Inspect the truck for a factory transmission-fluid heat exchanger before beginning installation.
- The additional heater tube is not listed as part of the standard bypass kit contents.
- Confirm part availability with a Chrysler, Dodge, Jeep, or Ram parts department before installation when required.
Coolant-Flow Comparison
Without Coolant Bypass
With Fleece Performance Coolant Bypass
Product Specifications
- Product Type: Coolant bypass kit
- Application: 2013–2018 Ram 2500 and Ram 3500
- Engine: 6.7L 24-Valve Cummins
- Bypass Operation: Temperature-controlled secondary thermostat
- Hose Type: Black braided nylon coolant hose with high-temperature protective sleeve
- Fitting Type: AN O-ring fittings
- UPC: 670875718364
- Shipping Weight: 8 lbs
Certifications
- CARB Executive Order: D-834-7
- SEMA Certification: SC-FLC01-0030
Warranty
Installation Resources
Patent and Trademark Information
Protected under U.S. Patent No. D1,037,317 and U.S. Trademark Registration Nos. 6,099,979; 6,099,980; 6,099,981; and 7,659,022.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment before ordering. Emissions, warranty, and installation requirements may vary by vehicle and location. Inspect the vehicle for a factory transmission-fluid heat exchanger before installation, as Chrysler heater tube 68048997AA may be required.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2013–2018 | Dodge/Ram | Ram 2500 | 6.7L 24-Valve Cummins |
| 2013–2018 | Dodge/Ram | Ram 3500 | 6.7L 24-Valve Cummins |
