Product Overview

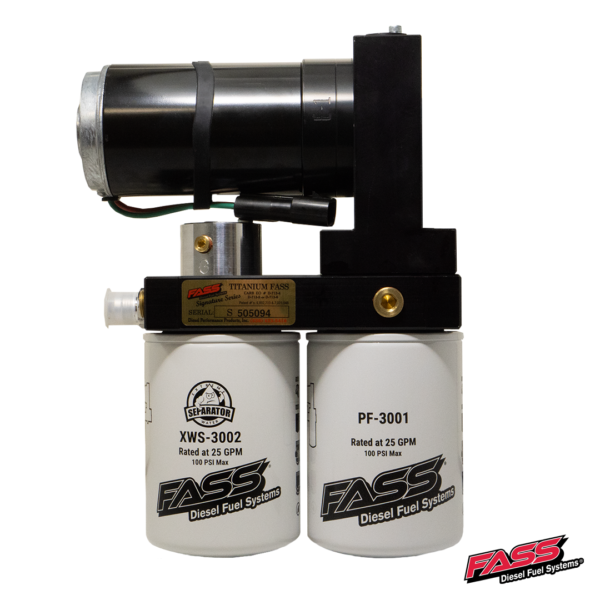

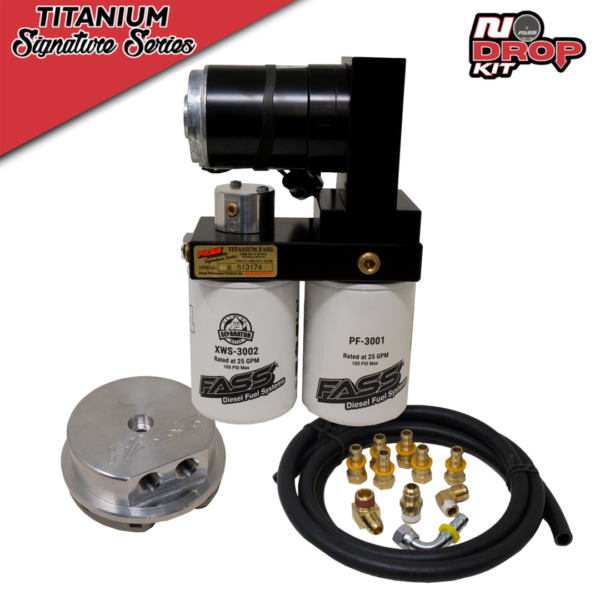

FASS No-Drop Titanium Signature Series Fuel System for 2008–2010 Ford Powerstroke 6.4L
Upgrade your 2008–2010 Ford F-250 or F-350 equipped with the 6.4L Powerstroke using the FASS No-Drop Titanium Signature Series Fuel System. Designed for stock and modified diesel trucks, this system provides a dependable supply of clean, properly conditioned fuel to help protect the injection system and support consistent engine performance.
The Titanium Signature Series removes water, fine debris, air, and vapor before diesel fuel reaches the engine. Supplying cleaner and more consistent fuel can help improve combustion, throttle response, fuel-system reliability, fuel efficiency, and cold-weather operation.
The No-Drop configuration provides the filtration and fuel-delivery benefits of a complete FASS system without requiring removal of the factory fuel tank. It includes a precision-machined 6061-T6 billet-aluminum Single Bolt Fuel Sump with integrated suction and return ports.
Installation requires one opening in the bottom of the fuel tank, allowing the FASS system to draw and return fuel through the same sump assembly.
Dependable Fuel Delivery and Injection-System Protection
Cleaner, properly conditioned diesel fuel can help reduce wear on injectors, pumps, and other important fuel-system components.
- Supports Stock and Modified Powerstroke Engines: Available configurations provide dependable fuel delivery for factory and performance-oriented 6.4L Powerstroke applications.
- Injection-System Protection: Helps remove water, fine debris, air, and vapor before fuel reaches sensitive injection-system components.
- Consistent Fuel Delivery: Supports dependable fuel supply during daily driving, towing, acceleration, and demanding use.
- Performance Support: Properly conditioned fuel can help support throttle response, fuel atomization, horsepower, and overall engine operation.
- Limited Lifetime Warranty: Warranty coverage is available when registration and applicable FASS warranty requirements are completed.
Advanced Filtration Technology
The FASS Titanium Signature Series filters and conditions diesel fuel before it reaches the high-pressure injection system.
- Water Separation: Removes more than 99% of water from diesel fuel based on third-party testing.
- 2-Micron Absolute Microglass Filtration: Captures fine contaminants that may pass through standard OEM filtration.
- Air and Vapor Removal: The patented FASS process helps remove entrained air and vapor for a cleaner and more consistent fuel supply.
- Mass Flow Return: Continuously circulates unused fuel through the filters to help keep the tank supply clean and conditioned.
Key Benefits
- Injection-System Protection: Cleaner fuel helps reduce wear on injectors, pumps, and related fuel-system components.
- Improved Engine Response: Consistent fuel delivery can help support throttle response, fuel atomization, and injection timing.
- Fuel-Economy Potential: More efficient combustion may contribute to improved fuel economy. Results vary by vehicle condition, modifications, tuning, and driving habits.
- Additional Contamination Protection: The Extreme Water Separator provides an added safeguard against severely contaminated diesel fuel.
- Cold-Weather Confidence: Supports dependable operation in low temperatures, especially when paired with the appropriate FASS fuel-heater components.
- Cleaner Engine Operation: Improved fuel quality and combustion may help reduce soot output and DPF regeneration frequency when vehicle condition, tuning, maintenance, and driving conditions support it.
- Proven Durability: FASS reports a fuel-system failure rate below 0.5%.
- Fuel Lubricity Support: FASS reports that its fuel-conditioning process can improve diesel-fuel lubricity by at least 10%.
Key Features
- Vehicle Application: 2008–2010 Ford F-250 and F-350 with the 6.4L Powerstroke.
- Fuel-Flow Support: Available configurations support stock and modified 6.4L Powerstroke applications producing up to 1,500 horsepower, depending on the selected system.
- Filtration Rating: 2-micron absolute microglass filtration.
- Water Removal: Removes more than 99% of water based on third-party testing.
- Patented Air and Vapor Removal: Conditions fuel before it reaches the engine.
- Motor Life: Designed for more than 1,000,000 miles of operation.
- Filter Life Expectancy: Up to 30,000 miles under normal operating and service conditions.
- Mass Flow Return: Continuously filters and circulates unused fuel.
- Whisper Technology: Designed for quieter motor operation.
- Performance Radius Cuts: Smooth internal passages help reduce sharp restrictions and promote consistent fuel flow.
- Heavy-Duty Mounting Hardware: Includes durable bolt-on steel mounting brackets.
- Fuel-Heater Compatibility: Compatible with optional application-appropriate FASS fuel-heater components.
- Warranty: Limited Lifetime Warranty with registration and applicable requirements.
- No-Drop Configuration: Includes the Single Bolt Fuel Sump Kit for installation without removing the factory fuel tank.

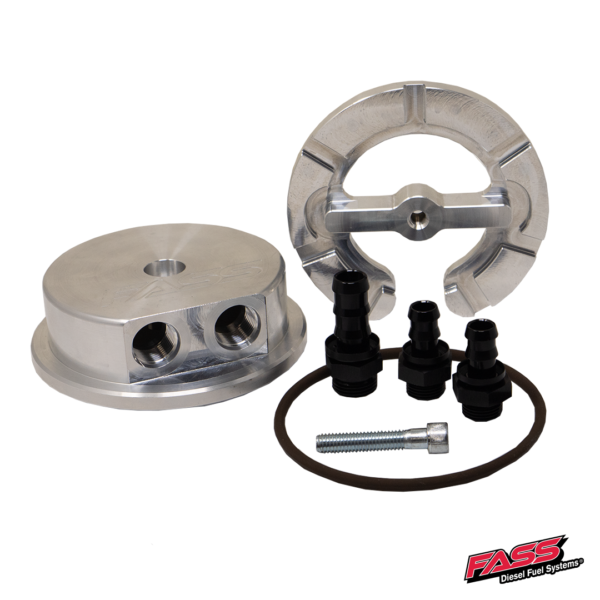

Single Bolt Fuel Sump
- 6061-T6 Billet-Aluminum Construction: Built for strength, durability, and resistance to corrosion.
- Single-Opening Installation: Requires one opening in the bottom of the factory fuel tank.
- Integrated Suction Port: Draws fuel directly from the sump assembly.
- Integrated Return Port: Routes return fuel through the same assembly.
- Consistent Fuel Supply: Helps maintain fuel delivery during towing, acceleration, and other demanding driving conditions.
- No Tank Removal Required: The factory fuel tank does not need to be lowered for the No-Drop installation approach.
Vehicle Compatibility
Application: 2008–2010 Ford F-250 and F-350 trucks equipped with the 6.4L Powerstroke diesel engine.
Select the appropriate fuel-system configuration based on the truck’s current horsepower, planned modifications, and fuel-delivery requirements.
Why Choose the FASS No-Drop Titanium Signature Series?
The FASS No-Drop Titanium Signature Series is designed for 6.4L Powerstroke owners who want advanced filtration, dependable fuel delivery, and an installation that does not require removing the factory fuel tank.
Whether your Ford is used for daily driving, towing, commercial work, or a high-horsepower build, this system provides the clean and consistent fuel supply needed to support reliable operation.
Installation Resources
Disclaimer
Verify fitment before ordering. Emissions, warranty, and installation requirements may vary by vehicle and location.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2008–2010 | Ford | F-250 | 6.4L Powerstroke |
| 2008–2010 | Ford | F-350 | 6.4L Powerstroke |
