Product Overview

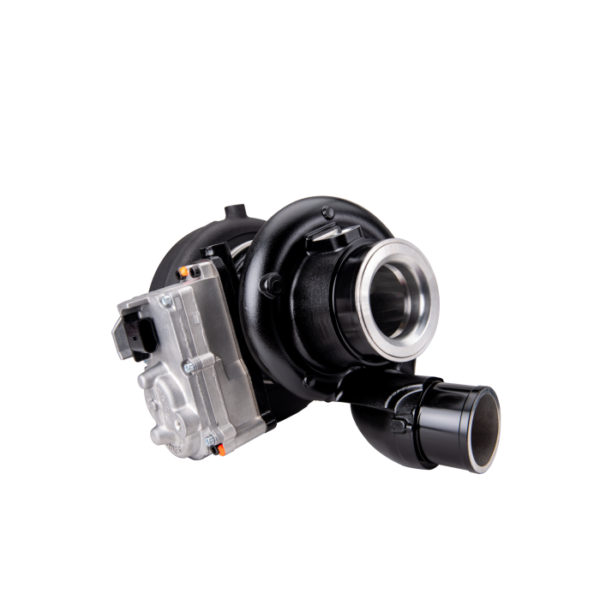

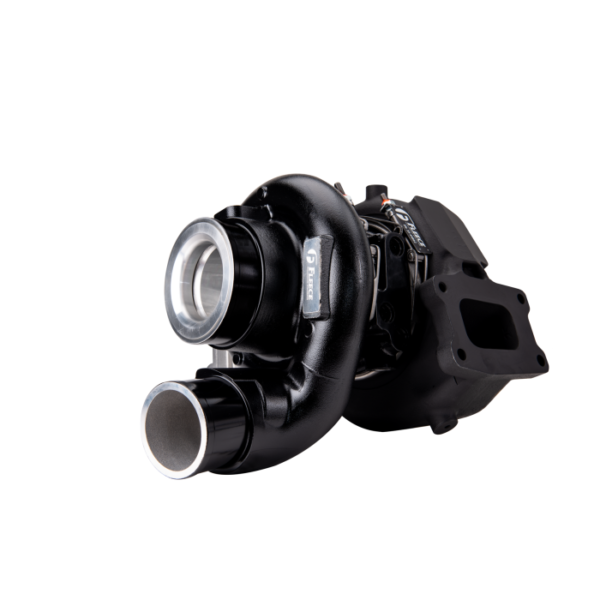

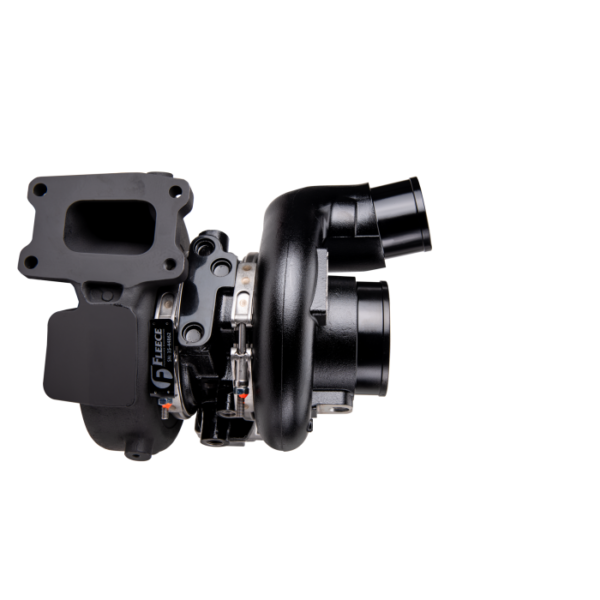

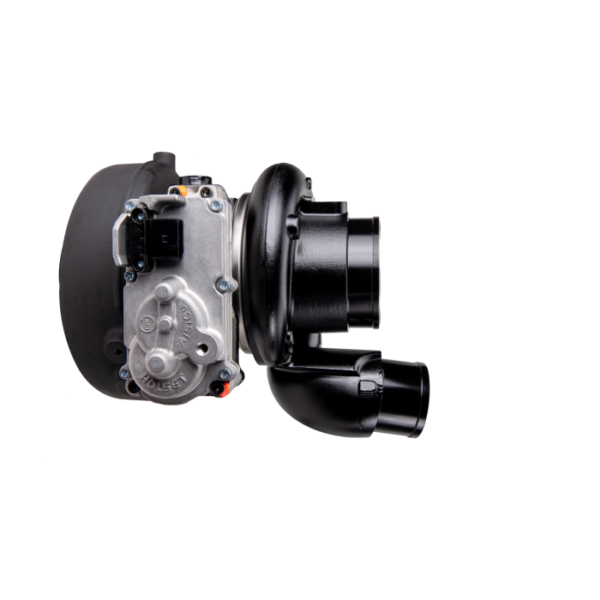

Fleece Performance Cheetah® Turbocharger for 2019–2024 Ram 6.7L Cummins
The Fleece Performance Cheetah® Turbocharger is engineered as a direct, stock-appearing replacement for the factory turbocharger on compatible 2019–2024 Ram 2500 and Ram 3500 trucks equipped with the 6.7L Cummins diesel engine.
Unlike upgrade turbos that require an additional kit, the Cheetah® is designed to bolt directly into the factory location while offering the potential for significantly more capability than the factory unit.
Built around Fleece Performance’s in-house-manufactured Forged Milled Wheel (FMW) compressor technology and an Inconel turbine wheel, the Cheetah® is designed to deliver smooth throttle response, strong top-end power, and the distinctive sound Cheetah-series turbos are known for.
Key Features

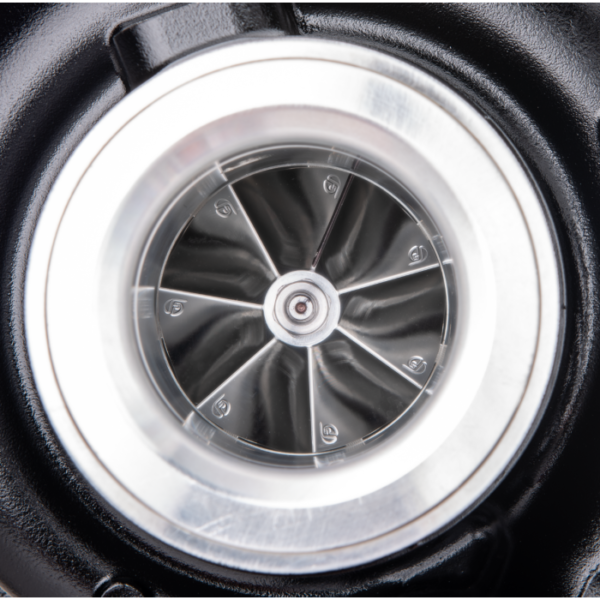

- Exclusive FMW Compressor Wheel: Forged, milled compressor wheel manufactured in-house by Fleece Performance.

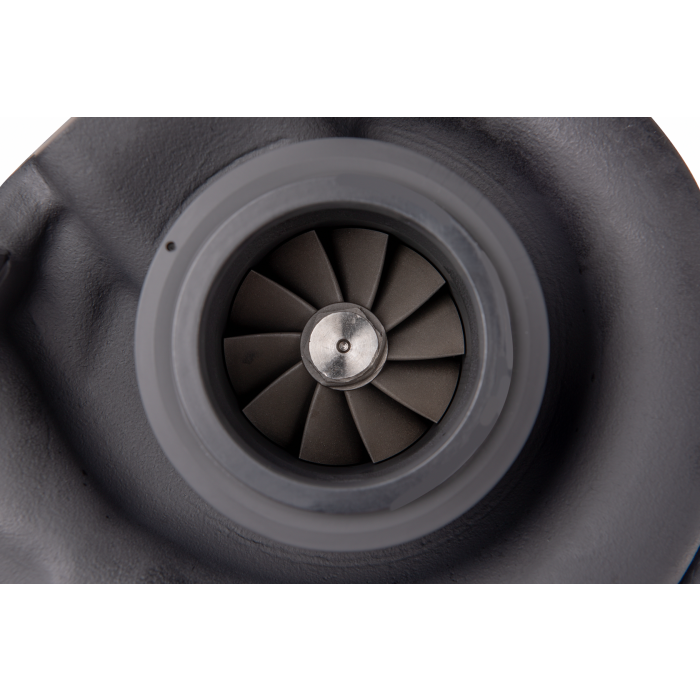

- Inconel Turbine Wheel: Designed for durability under sustained heat and boost.
- Plug-and-Play Actuator: New actuator designed to operate without additional calibration programming.
- Retains Factory Functions: Designed to maintain OEM functions, including exhaust brake operation and warm-up cycle.
- Direct-Fit Design: No additional kit required for installation.
What’s Included
- Exhaust flange gasket
- Exhaust flange studs and nuts
- Turbo oil drain gasket
- Coolant banjo sealing washers
Note: Speed sensor is not included with this turbocharger.
Application Notes & OEM Interchange
This turbocharger is designed as a direct replacement for the following factory Holset unit:
- Replaces Holset Part Number: 5456364
- Replaces Holset Model: HE300VG
OEM Interchange Numbers:
- 68444771AA
- 68444771AB
Core Charge & Return Policy
This turbocharger is sold with a core charge. All paperwork and instructions needed to return your core are included with the turbocharger. Customers are responsible for all return shipping costs associated with the core return.
Product Specifications
- Product Type: Direct-Fit Turbocharger
- Application: 2019–2024 Ram 2500 & Ram 3500
- Engine: 6.7L 24-Valve Cummins Diesel
- Compressor Wheel: Fleece Performance Exclusive FMW (Forged Milled Wheel)
- Turbine Wheel: Inconel
- Speed Sensor: Not Included
- UPC: 670875717534
- Shipping Weight: 54 lbs
Certifications
CARB Executive Order: D-834-2
SEMA Certification: SC-FLC01-0012
Warranty
Installation Resources
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment before ordering. This turbocharger is intended for compatible 2019–2024 Ram 6.7L Cummins applications. A core charge and return process applies to this product; the customer is responsible for return shipping costs. Emissions compliance, warranty terms, and installation requirements may vary by vehicle and location.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019 | Ram | Ram 2500 / 3500 | 6.7L 24-Valve Cummins |
| 2020 | Ram | Ram 2500 / 3500 | 6.7L 24-Valve Cummins |
| 2021 | Ram | Ram 2500 / 3500 | 6.7L 24-Valve Cummins |
| 2022 | Ram | Ram 2500 / 3500 | 6.7L 24-Valve Cummins |
| 2023 | Ram | Ram 2500 / 3500 | 6.7L 24-Valve Cummins |
| 2024 | Ram | Ram 2500 / 3500 | 6.7L 24-Valve Cummins |
