Product Overview

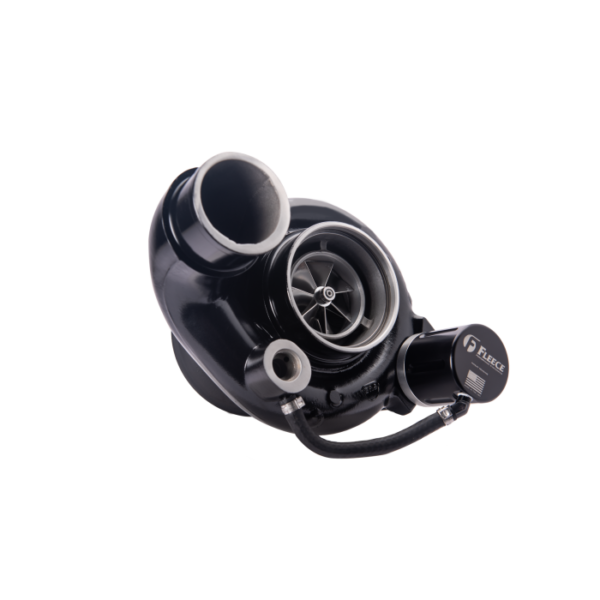

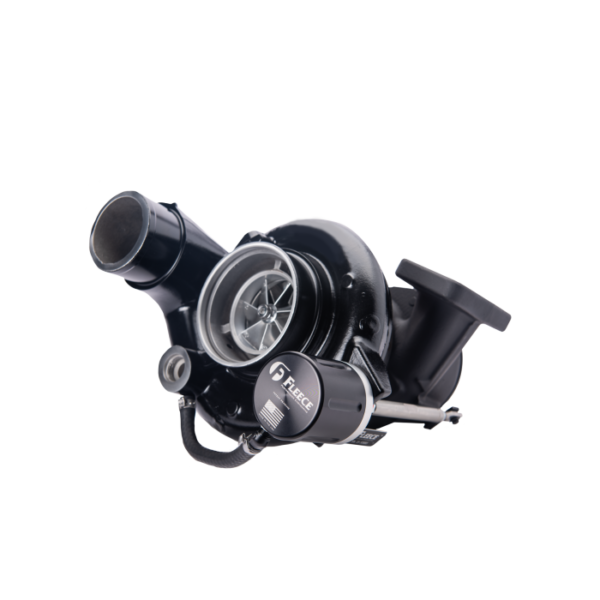

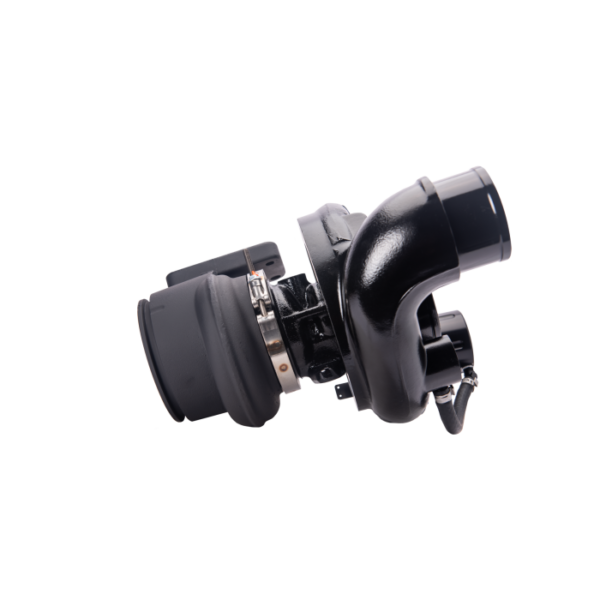

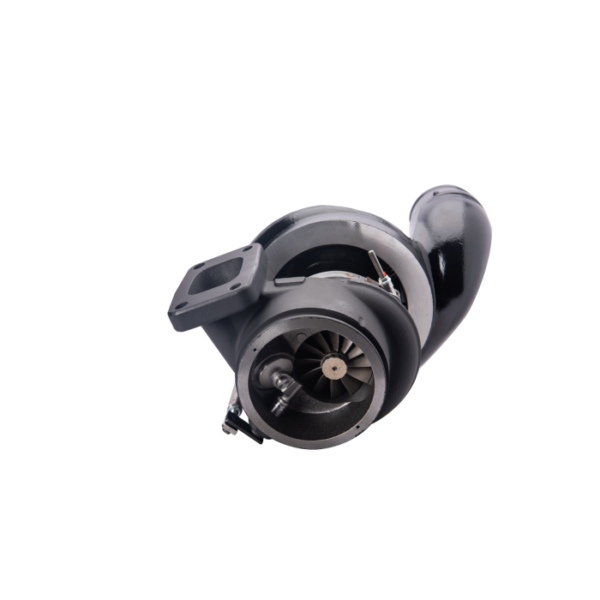

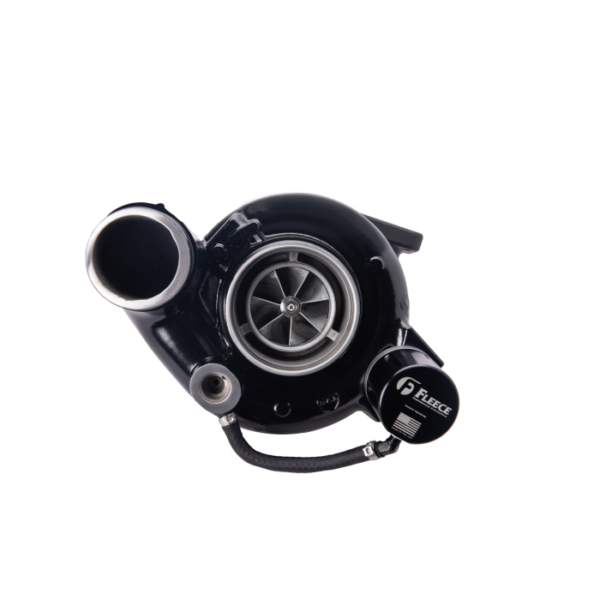

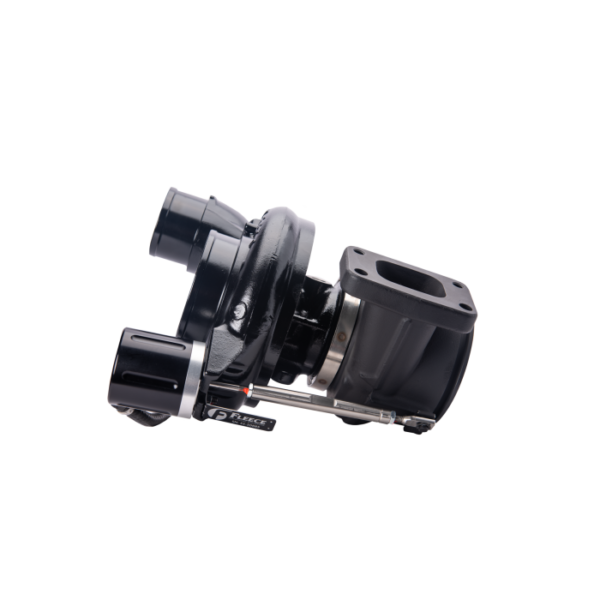

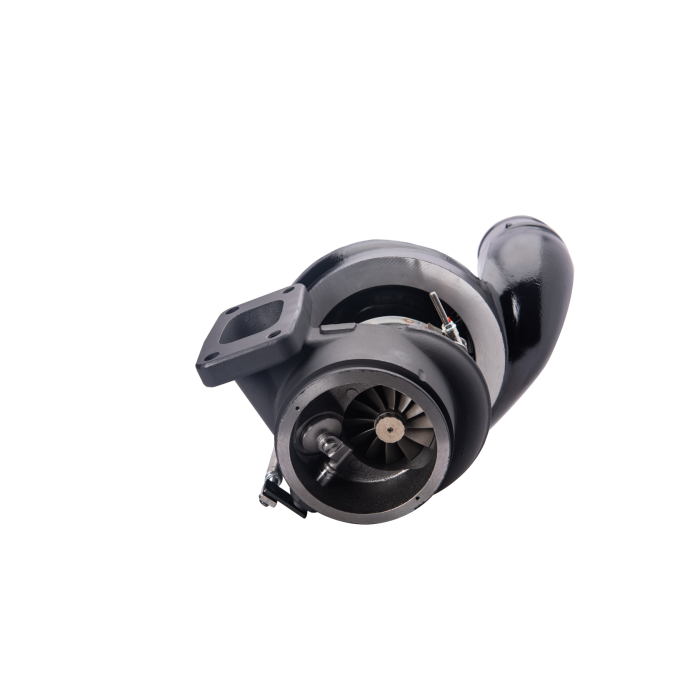

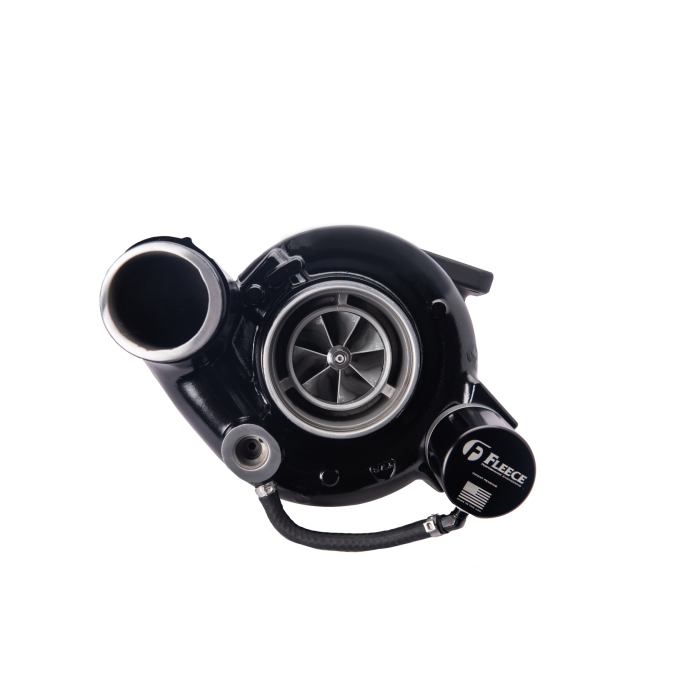

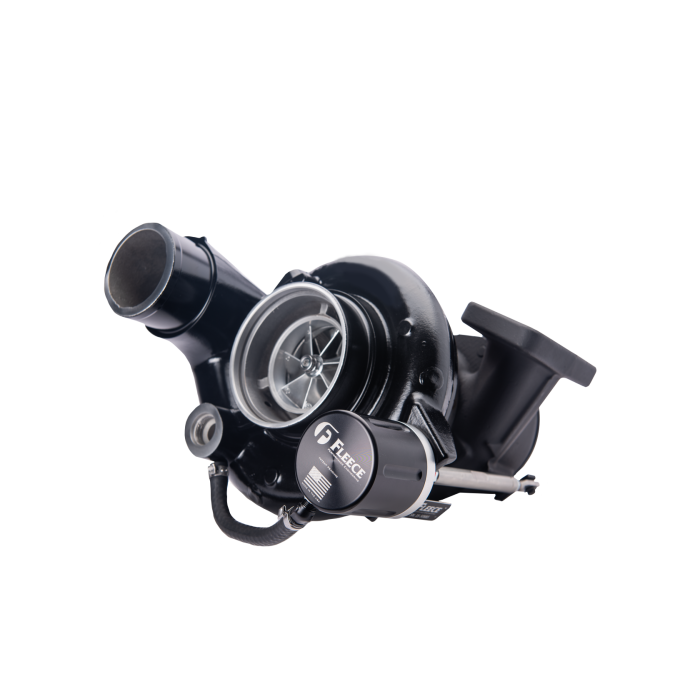

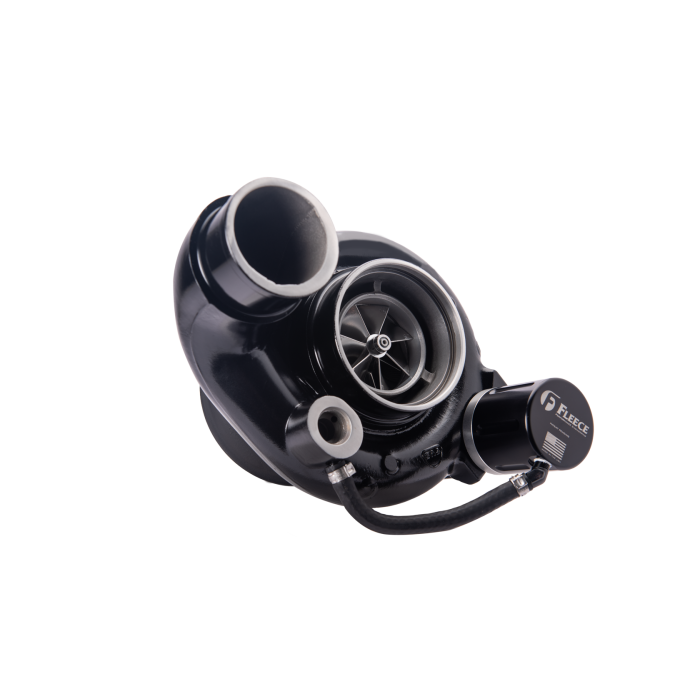

Fleece Performance Cheetah® Turbocharger for 2004.5–2007 Dodge/Ram 5.9L Cummins
The Fleece Performance Cheetah® Turbocharger is engineered as a direct, stock-appearing replacement for the factory turbocharger on compatible 2004.5–2007 Dodge/Ram 2500 and Ram 3500 trucks equipped with the 5.9L Cummins diesel engine.
Unlike upgrade turbos that require an additional kit, the Cheetah® is designed to bolt directly into the factory location while offering significantly more capability than the factory unit.
Built around Fleece Performance’s exclusive 63mm Forged Milled Wheel (FMW) compressor technology and an Inconel turbine wheel, the Cheetah® is designed to deliver smooth throttle response, strong top-end power, and the distinctive sound Cheetah-series turbos are known for.
Key Features
- Exclusive 63mm FMW Compressor Wheel: Forged, milled compressor wheel manufactured in-house by Fleece Performance.
- Inconel Turbine Wheel: Designed for durability under sustained heat and boost.
- Preset Wastegate: Fleece Performance exclusive wastegate preset to 40 PSI.
- High Capability Rating: Designed to support vehicle modifications up to 650 RWHP.
- No Core Charge: Sold outright with no core return required.
Product Video
Application Notes & OEM Interchange
Important — 2004.5 Model Year Fitment: For MY2004.5 trucks, fitment must be verified using the VIN. Check the tenth digit of the VIN: if it is a 5 or higher, this turbocharger is the correct fit. If the tenth digit is a 4, a different part number (FPE-351-0304) is required instead.
OEM Interchange Numbers:
- 3599811
- 05086863AA
- 4033667H
Product Specifications
- Product Type: Direct-Fit Turbocharger
- Application: 2004.5–2007 Dodge/Ram 2500 & Ram 3500
- Engine: 5.9L 24-Valve Cummins Diesel
- Compressor Wheel: Fleece Performance Exclusive 63mm FMW (Forged Milled Wheel)
- Turbine Wheel: Inconel
- Wastegate: Preset to 40 PSI
- Rated Capability: Up to 650 RWHP
- Core Charge: None
- UPC: 635909310198
- Shipping Weight: 45 lbs
Certifications
CARB Status: CARB Executive Order Pending. This turbocharger is not for sale or use on emissions-controlled vehicles registered or operated in California.
Warranty
Installation Resources
Patent & Trademark Information
Protected under U.S. Patent D1,066,420 and U.S. Trademark Registration Nos. 6,271,063 and 6,099,981.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov
Disclaimer
Verify fitment before ordering, including VIN verification for MY2004.5 applications. This turbocharger is intended for compatible 2004.5–2007 Dodge/Ram 5.9L Cummins applications and is not certified for sale or use in California pending CARB Executive Order approval. Warranty terms and installation requirements may vary by vehicle and location.
Vehicle Fitment
Vehicle applications are listed below. Trim names appear in the Submodel column when available. Check all vehicle details before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 | Dodge/Ram | Ram 2500 | SLT |
| 2004 | Dodge/Ram | Ram 2500 | ST |
| 2004–2007 | Dodge/Ram | Ram 3500 | Laramie |
| 2004–2007 | Dodge/Ram | Ram 3500 | SLT |
| 2004–2007 | Dodge/Ram | Ram 3500 | ST |
| 2005–2007 | Dodge/Ram | Ram 2500 | Laramie |
| 2006–2007 | Dodge/Ram | Ram 2500 | SLT |
| 2006–2007 | Dodge/Ram | Ram 2500 | ST |
| 2006–2007 | Dodge/Ram | Ram 2500 | Sport |
| 2006–2007 | Dodge/Ram | Ram 2500 | TRX4 |
| 2006–2007 | Dodge/Ram | Ram 3500 | Sport |
| 2007 | Dodge/Ram | Ram 3500 | TRX4 |
| Year | |
|---|---|
| Make | |
| Model | Ram 2500, Ram 3500 |
| Engine | 5.9L 24-Valve Cummins |
| Part Type | Turbocharger |
| Brand | Fleece |
