6 Inch Lift Kit w/ Radius Arm Ram 3500 13-18 4WD Diesel Fox 2.5 Performance Elite

Product Overview

Take your 2013-2018 RAM 3500 diesel powered truck to the next level by installing a 6-inch lift kit with radius arms engineered by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

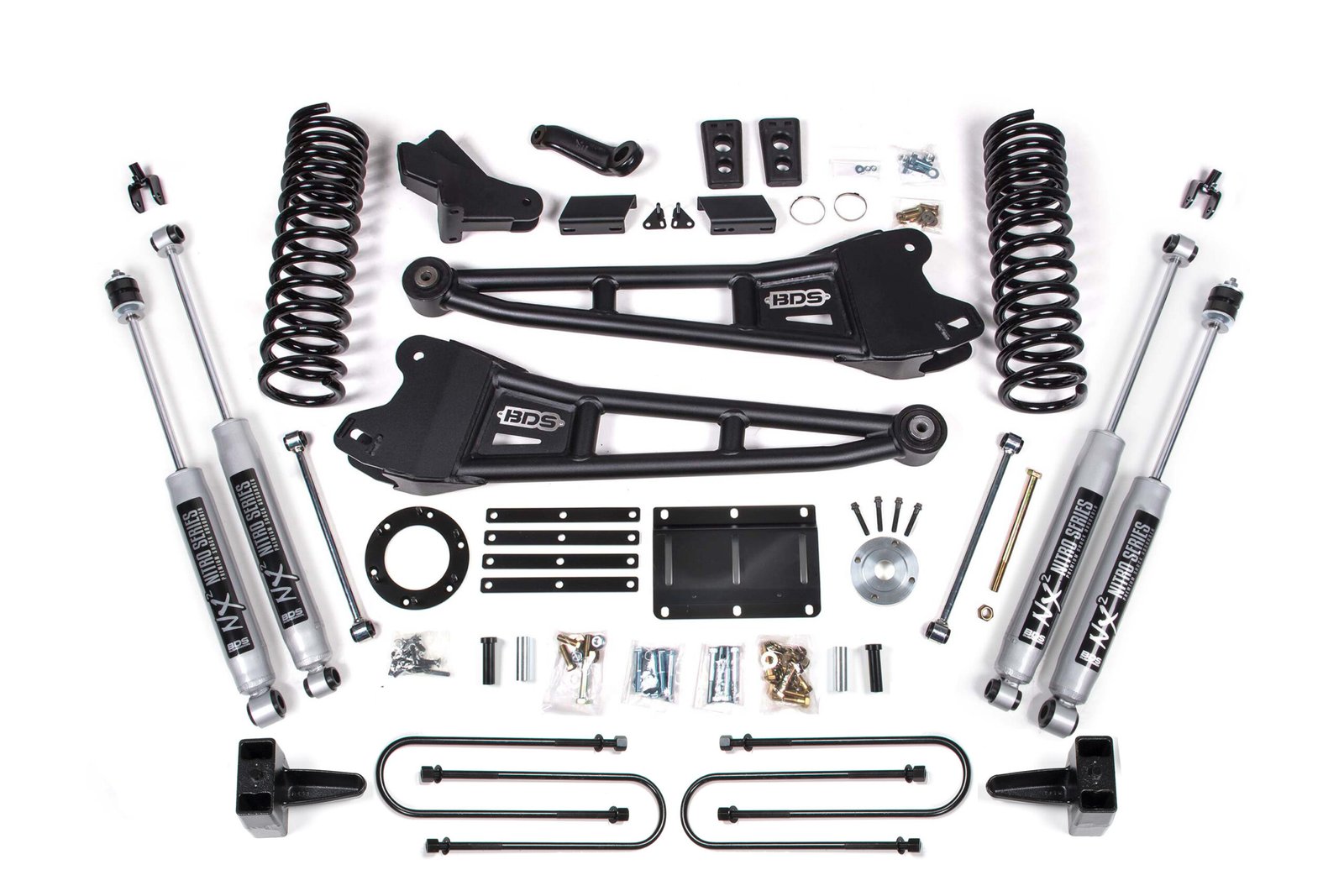

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty tubular radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring

• Rear Lift Method: Blocks

• Shocks Included: Yes

• Front Lift Height: 6 Inch

• Rear Lift Height: 5 Inch

• The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.

• Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

• Heavy duty tubular radius arms improve strength, handling and caster control

• Front high strength progressive rate coil springs for a great ride on any terrain

• Front track bar relocation bracket to re-position axle

• Forged drop pitman arm to correct steering angles

• Front sway bar correction to maintain handling performance

• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Tire Size: 37 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 17 x 9 Back Spacing: 4.5/4.5

Kit Components:

• Includes one BDS012516, Dodge 5 Inch Rear Block Kit w/4 Inch, UPC Code 658848612598

• Includes one BDS012615, 2013-2018 Ram 2500/3500 4wd 6 Inch Radius Arm Front Box Kit, UPC Code 711745611719

• Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils – Diesel, UPC Code 658848616428

• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429

• Includes one BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt, UPC Code 658848619757

• Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 Inch Lift, Dual Speed Compression Adjust

• Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 InchРЎСљ Lift, Dual Speed Compression Adjust

Product Details

• Brand: BDS Suspension
• Manufacturer SKU: BDS2104FPE
• Part Type: Lift Kits
• UPC: 840416403060
• Lift Height: 6.0 Inch
• Fuel Type: Diesel
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Shipping Packages

This item ships in multiple packages. Confirm shipping before publishing.

Vehicle Fitment

Vehicle fitment comes from the supplier; engine was not listed on each fitment row. Verify the vehicle and configuration before ordering.
