4 Inch Lift Kit Ford F250/F350 Super Duty 05-07 4WD Diesel Block Kit Without Factory Overload NX2 Nitro

Product Overview

Increase ground clearance on your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring

• Rear Lift Method: Block

• Shocks Included: Yes

• Front Lift Height: 4 inch

• Rear Lift Height: 5 inch

• These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.

• If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.

• 5 inch Block included to replace factory block.

• Easy, 100 percent Bolt-on installation

• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain

• Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• Steel lift blocks with built-in bump stop provide level stance from front to rear

• Standard NX2 Nitro shocks with vehicle-specific valving for better control

• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option Block Kit without Factory Overload

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

• Blocks made of steel for high strength.

• Designed to provide correct pinion angles.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish

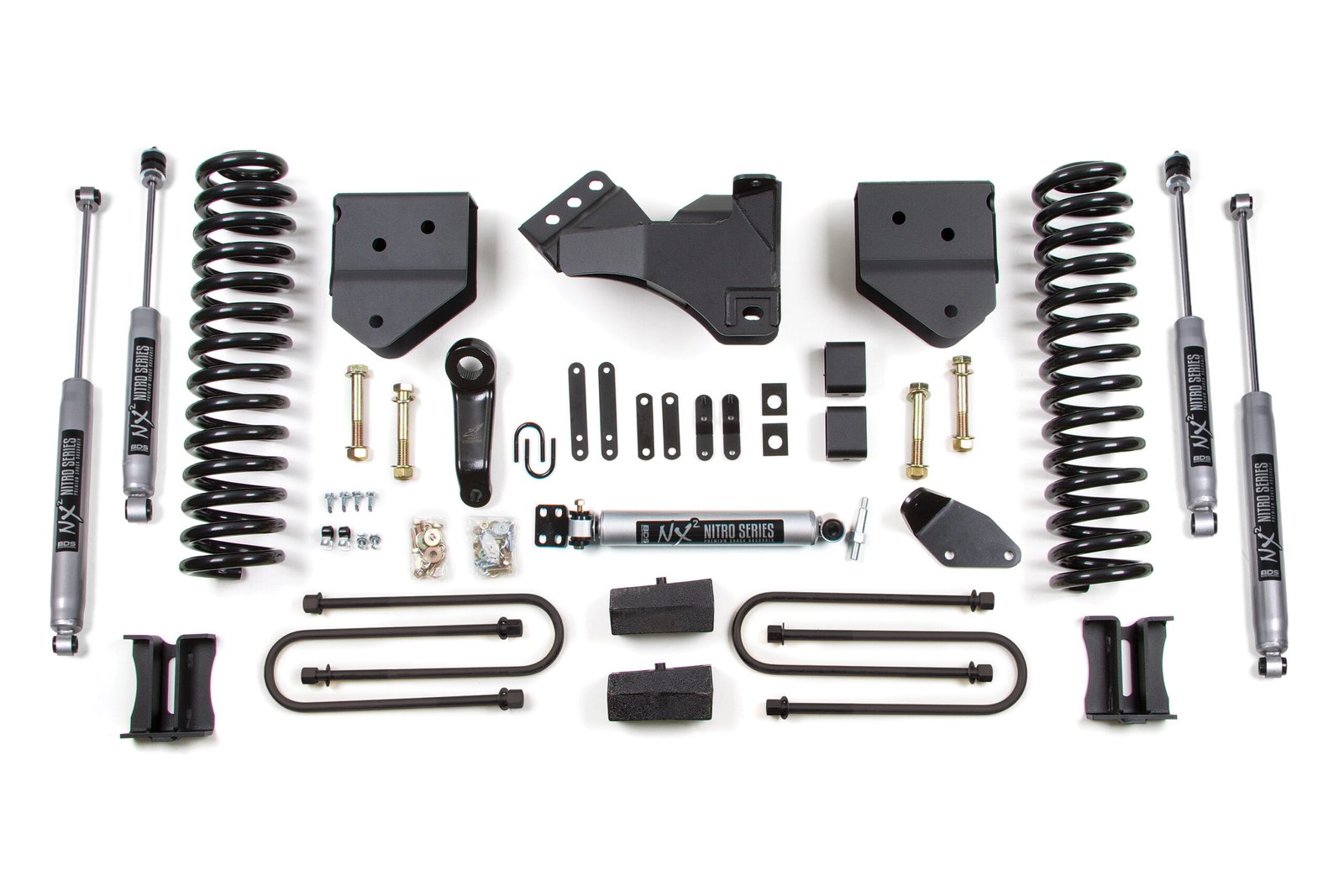

Kit Components:

• Includes one BDS013329, 1999-2007 Ford F250/F350 Rear Box Kit w/o overload, UPC Code 658848613304

• Includes one BDS013411, 05 Ford F250/350 4 Inch Front Box Kit, UPC Code 658848613427

• Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit – Diesel, UPC Code 658848616527

• Includes one BDS85415, Steering Stab 23.9 x 14.3 – EB1/EB1, UPC Code 711745609112

• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 – S50/EB2, UPC Code 711745609495

• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 – EB1/EB1, UPC Code 711745609693

Product Details

• Brand: BDS Suspension
• Manufacturer SKU: BDS343H
• Part Type: Lift Kits
• UPC: 840416416725
• Color: Silver
• Finish: Powdercoat
• Lift Height: 4.0 Inch
• Fuel Type: Diesel
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Shipping Packages

This item ships in multiple packages. Confirm shipping before publishing.

Vehicle Fitment
