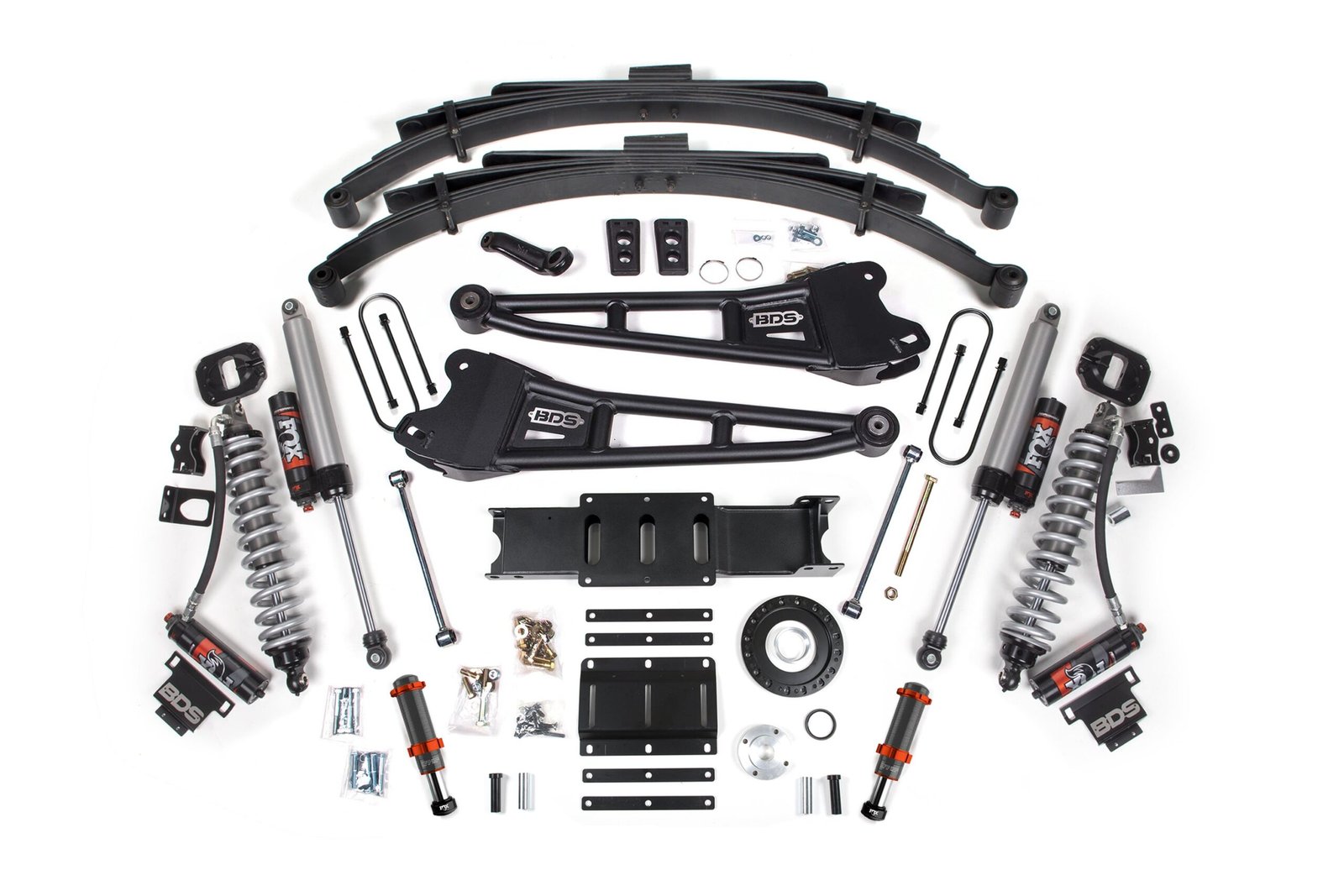

13-18 Ram 3500 (Diesel) 6 Inch Coilover Conversion Kit, 4.5 Inch Rear Lift, Leaf Spring, 8 Bolt – Fox 2.5 Performance Elite Series C/O + Fox 2.0 IFP Bump Stop, Fox 2.5 Performance Elite Series Shocks BDS Suspension

Product Overview

Built to take abuse and ask for more, the BDS 6 Inch Radius Arm Lift Kit for RAM 3500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS radius arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers-giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.

Looking to push harder? The optional FOX 2.0 hydraulic bump stops for the front are a must.

These add an extra layer of control when you're hitting hard or landing heavy, soaking up big impacts and keeping things in check.

Whether you're crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Features and Benefits:

• Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.

• Fox 2.5 Performance Elite rear shocks.

• Optional Auxiliary front shock absorber.

• Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.

• Front adjustible track bar which allows the front of the truck to be re-centered after lifted.

• Front sway bar correction to maintain handling performance.

Recommended Tires and Wheels:

• (Trimming may be required)

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace

• 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

• 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Rear Lift Option:

Block Kit:

• Mounts between factory leaf springs and axle to provide lift

• Made of cast iron for high strength.

• Designed to provide correct pinion angles.

Leaf Springs:

• Eliminates any need for a lift block.

• Reduces axle wrap and creates a more controlled and stable feel.

• Multi-leaf progressive design for a smooth ride.

• Maintains factory payload weight ratings.

Rubber Bump Stop:

• Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe. They are great for road use and light offroading where the bump stops will be engaged at low speeds.

FOX 2.0 Factory Race Series Hydro Bump Stop:

• Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid offroader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control

Indexing Ring Option:

6 Bolt Indexing Ring:

• Kits come standard with 6-Bolt indexing ring kit.

8 Bolt Indexing Ring:

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).

• The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.

Details:

• Finish: Powdercoat

• Color: Black

• Front Lift Height: 6.0 Inch

• Rear Lift Height: 4.5 Inch

• Fuel Type: Diesel

• Lift Height: 6.0 Inch

• Lift Type: Coilover/Leaf Spring

• Engine Years: 2013-2018

• Engine Manufacturer: Cummins

• Shocks Included: Yes

• Series: Performance Elite Series

• Shock Style: FOX 2.5 Performance Elite Shocks

Product Details

• Brand: BDS Suspension
• Manufacturer SKU: BDS2140PESB
• Part Type: Lift Kits
• UPC: 840416437614
• Color: Black
• Finish: Powdercoat
• Lift Height: 6.0 Inch
• Fuel Type: Diesel
• Engine Manufacturer: Cummins
• Engine Years: 2013-2018
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Vehicle Fitment

Vehicle fitment comes from the supplier; engine was not listed on each fitment row. Verify the vehicle and configuration before ordering.
